RENT AJA HD-SDI to HDMI Video and Audio Converter Features

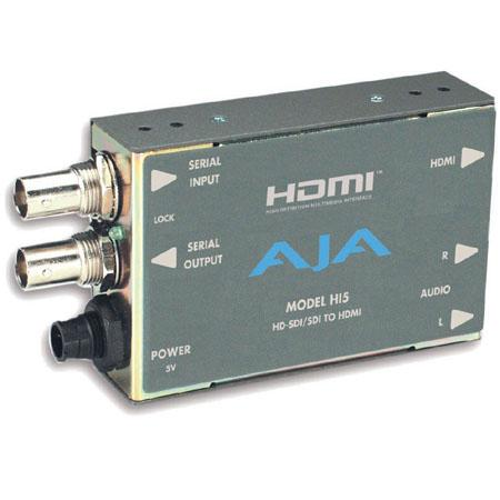

The AJA Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2 Channel RCA style audio outputsfor separate audio monitoring if needed. The Hi5 also provides a looping SDI/HD-SDI output useful for connecting additional equipment, or for "daisy chaining" multiple monitors to the same SDI-HD-SDI source.
HDMI with embedded audio, 24-bit (selectable by internal jumper: 2 or 8 channels) Analog Audio-2 channel RCA-style outputs at -10dBV (nominal), Channel 1 and 2 1 Looping SDI/HD-SDI output of the SDI input (75 ohm, unterminated)
HDMI
Standard Type A connector
HDMI Video
8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)
HDMI Audio
24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
HDCP
The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SDI/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
Power
+5 VDC regulated, 3 watts DWP-U-R1 AJA power supply (included)
