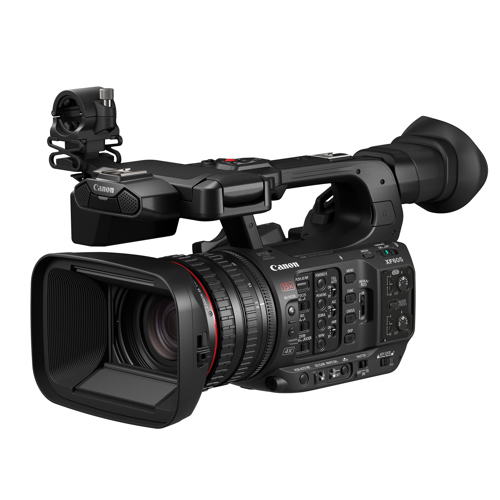

RENT Canon XF605 4K UHD 10-Bit Professional Camcorder Features
• 1.0-inch 4K UHD CMOS Sensor • 15x Optical 4K UHD L Zoom Lens with 5-Axis Optical Image Stabilization • 5-Axis Optical Image Stabilization • Independent 3-Density ND Filter • 4K UHD 59.94P 4:2:2 10-bit Recording • HDR Recording with HLG/PQ Shooting Assist • Wide DR Gamma (800%) Support • Dual SD Card Slots • Slow and Fast Motion Recording up to 120fps • Dual Pixel CMOS AF, Eye Detection AF, EOS iTR AF X, Dual Pixel Focus Guide • UVC Support (USB Video Class) • Look File for Recording (User LUT) • 3.5-inch Rotating Touch Panel LCD and .36-inch OLED Electronic Viewfinder • 12G-SDI, Genlock, Time Code, and Other Terminals • Flexible Audio Inputs with Linear PCM 4-channel Support • RC-V100 Remote Controller Support • Compact, Lightweight and Ergonomic Design • New CTM (Content Transfer Mobile) iPhone Application • Network Connections for FTP Transfer and Browser Remote (Wired and Wi-Fi Connectivity)
- Overview -
Canon XF605 Pro Camcorder. The XF605 Professional Camcorder is the next-generation XF-series camera providing excellent mobility, connectivity, and superb 4K UHD HDR image quality. Equipped with Canon’s renowned Dual Pixel CMOS AF, the XF605 achieves high-speed and high-accuracy focusing, and is the first XF-series model to include Eye Detection AF, as well as iTR AF X technology for improved face and head detection for more accurate and stable tracking of subjects.
Versatile Functions, Simplified Post. The XF605 features a 4K L-series 15x Optical Zoom lens with 3-ring manual control. XF605 can shoot 10-bit 4:2:2 4K UHD footage in XF-AVC and MP4 formats to dual SD cards for easy post-production and quick delivery. It features multiple recording modes including Frame, Interval, and Slow and Fast motion up to 120fps in FHD.
The Pro Camcorder, Modernized. An ideal tool for news gathering, XF605 features a new CTM (Content Transfer Mobile) iPhone application which allows for proxy footage, audio, and metadata to be exchanged between a newsroom server through the phone connection in the field and integrates into newsroom assignment planning software.
Brilliant Video Capture, In Any Environment. XF605 features a Multi-Function Shoe that is compatible with a new XLR microphone adapter (developed by TEAC Corporation) for increasing the total number of XLR inputs to 4, providing a flexible audio recording workflow. The camera features built-in Wi-Fi/Ethernet for Browser Remote, CTM (Content Transfer Mobile) app, IP streaming, and FTP transfer. The camera is also the first XF-series camera to feature USB Video Class allowing use as a webcam without the need for a 3rd Party HDMI to USB adapter.
10mm at wide end, 60cm across entire zooming range
White Balance
Auto, Preset (Daylight, Tungsten), Color Temperature Settings (2,000-15,000K), Set (1/2)
Frame Rate
60p, 30p, 24p
Minimum Illumination
Approx. 1.5 lux (with 1/30 sec. shutter speed, 29.97P)
Genlock Terminal
Yes
Timecode Terminals
Yes
Image Stabilization
Optical system (lens shift) + electronic stabilization (Image rotation and camera movements in the yaw and pitch directions are electronically corrected.) Modes: Dynamic IS, Powered IS, Standard IS, IS Off
Filter Diameter
58mm
Viewfinder
0.36" color OLED display, approx. 1.77 million dots, approx. 100% field of view
LCD Screen
3.5" LCD, (Approx. 2.76 million dots)
Microphone
Stereo (using electret condenser microphone)
Recording Media
SD card [x2] (SD/SDHC/SDXC)
USB Terminal
Type-C, SuperSpeed USB (USB 3.2 gen 1x1) supported, PTP class supported, UVC Supported Type-A, USB HOST supported (max. voltage: 5V / max. output current: 900 mA)
Video Terminal
HDMI connector, 12G-SDI terminal
Audio Terminal
3.5mm stereo mini-jack, XLR 3-pin jack (two channels)
HDMI Terminal
HDMI connector (Type A)
Headphone Terminal
3.5mm stereo mini-jack
Operating Temperature Range
For Performance: Approx. 0-40 Degree C, 85% (relative humidity) For Operation: Approx. -5-45 Degree C, 60% (relative humidity)
12G-SDI
Terminal Yes
Ethernet Terminal
Ethernet connector (RJ-45) (supports 1000BASE-T)
Battery Info
required, included
Battery Type
lithium ion
Battery Quantity
1
Dimensions
Approx. 6.6 x 6.8 x 13.1" (168 x 173 x 333mm) (Body only, excluding grip belt) Approx. 7.9 x 8.6 x 15.2" (200 x 219 x 385mm) (Including lens hood, eyecup and mic holder unit)
Weight
Approx. 4.4 lbs (2.01kg) (including grip belt; excluding hood, mic holder unit, eyecup, battery)
