OConnor ipod Head / O'Connor 1040
OConnor : Picture 1 thumbnail OConnor : Picture 2 thumbnail OConnor : Picture 3 thumbnail OConnor : Picture 4 thumbnail OConnor : Picture 5 thumbnail OConnor : Picture 6 thumbnail OConnor : Picture 7 thumbnail OConnor : Picture 8 thumbnail

RENT Tripod Head / O'Connor 1040

SKU: R-~OC1040KIT

First Day ?
Daily
Price
3-Day Wknd
Price
Weekly
Price
$100 $100 $300
$100.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $8,596.29 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

  • OConnor Ultimate 1040 Fluid Head Package
  • OConnor 30L Carbon Fiber Tripod (100mm)
  • OConnor Mid-Level Spreader for 30L
  • (3) x Sachtler Rubber Feet with Locking Device for Tripods
  • OConnor Soft Carrying Case
  • OConnor Molded Case for 1030
  • OConnor 1040 Ball Tie-Down
  • OCONR PANBARS HANDL 30DEG 12""L F/1030S
  • OConnor 2575-135 Bottom Extension of Telescoping Pan Handle
  • JC Adorama 120mm Quick Release Plate
  • OConnor Large Euro QR for 1040 Head
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

RENT Tripod Head / O'Connor 1040 Features

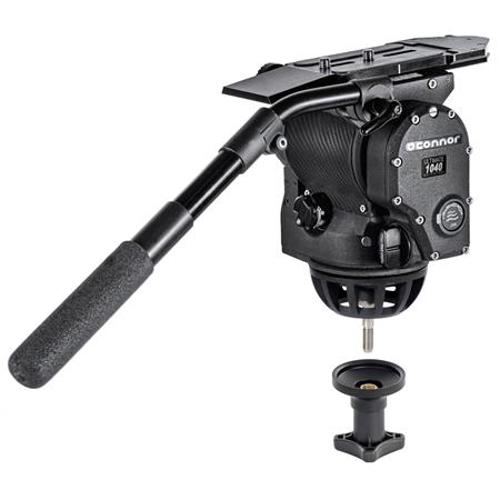

OConnor Ultimate 1040
The Ultimate 1040 fluid head brings the same quality build and precision movement found the larger OConnor 2575 and 2560 heads to enable cinematographers easily move from heavier to lighter payload camera setups without compromise.

Features of the lightweight yet sturdy fluid head include a stepless, ultra-smooth pan and tilt fluid drag custom designed to provide ultimate control and stability, as well as the OConnor Sinusoidal Counterbalance system that provides true, accurate balance at any point in the tilt range. Providing perfect balance even for lighter-weight cameras with counterbalancing down to zero, the Ultimate 1040 head is made with high-performance magnesium, and aluminum alloys with stainless steel and genuinecarbon fiber finishing, to deliver consistent results on the most demanding sets.

For camera operators, making the change to smaller, lighter cameraswhile retaining quality has never been easier. And most importantly, the famous OConnor feel, remains the same regardless of payload.

The versatile OConnor Ultimate 1040 supports payloads from 0 to 45 lbs. (20 kg) at a 5" (15cm)center of gravity and a +/-90 Degree tilt range.


- 100mm Ball Base-
Recommended base for 1030D and 1030Ds to adapt to any 100mm tripod [base supplied with all head packages].

Ultimate 1040 Fluid HeadJump to...

Capacity
@ 4" (102mm) GoG: 52 lb (23.5kg)
@ 5" (127mm) GoG: 45 lb (20.4kg)
@ 6" (152mm) GoG: 40 lb (18.1kg)
@ 8" (203mm) GoG: 32 lb (14.5kg)
Platform
Large Europlate Quick Release
Handle(s)
30 Degree
Bases
100mm (Mitchell, 150mm, Quickfix and Ped mounts optional)
Tilt
+90 Degree / -90 Degree
Dimensions (H x W x D)
6.2 x 7.6 x 4.6" (15.8 x 19.3 x 11.7cm)
Excluding quick release
Weight
10.6 lb (4.8kg)
includes quick release & plate and tiedown but excluding Pan Bar

Pan Handle ExtensionJump to...

Length
11.5" (29.2cm)

Pan Handle for 1030 RangeJump to...

Bend
30 degree
Length
12" (30cm)
Diameter
0.7" (18mm)
