Sound Devices vices 302 Compact Production Field Mixer
Sound Devices : Picture 1 thumbnail Sound Devices : Picture 2 thumbnail Sound Devices : Picture 3 thumbnail

RENT Sound Devices 302 Compact Production Field Mixer

SKU: R-~SD302K

First Day ?
Daily
Price
3-Day Wknd
Price
Weekly
Price
$28 $28 $84
$28.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $1,426.12 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

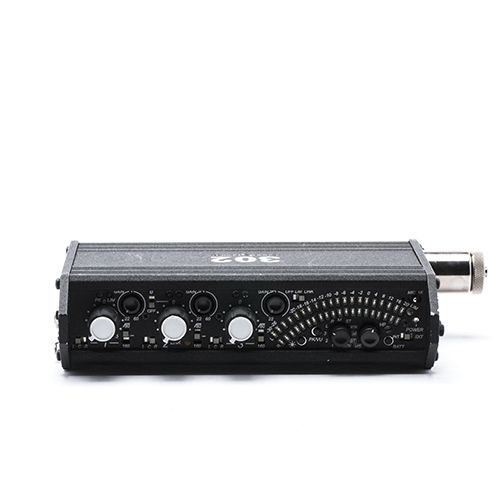

  • Sound Devices 302 Sound Mixer
  • (2) x AUDIO CABLE / XLR3 M-F / 20'
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

RENT Sound Devices 302 Compact Production Field Mixer Features

Developed specifically for audio-for-picture applications, the 302 mixer is the perfect tool for production companies and camera operators wanting to take control of their audio. The 302 is stunning for its size, flexibility, control and performance; it is the most compact and cost-effective battery-powered professional audio mixer in its class. With important features to accommodate nearly any over-the-shoulder production, the 302 interfaces with wireless transmitters and receivers, camera audio inputs of all kinds and external audio recorders. Its microphone inputs share the same superb circuitry of all Sound Devices field production tools.

Like Sound Devices larger 442 Field Mixer, the 302 has a complete feature-set in a compact, functional design. All controls are accessible on its three main surfaces; no hidden controls. The high-efficiency power circuitry runs the mixer from either three internal AA batteries or external 5-18 VDC.

RENT Sound Devices 302 Compact Production Field Mixer Specifications

Frequency Response
20 Hz - 30 kHz, +0.2, -0.5 dB
-1 dB @ 5 Hz and 50 kHz typical
Equivalent Input Noise
-126 dBu (-128 dBV) maximum
(22 Hz - 22 kHz bandwidth, flat filter, trim control fully up)
Input Clipping Level
0 dBu minimum (trim control fully down)
Line Output Clipping Level (1% THD)
20 dBu minimum, 18 dBu minimum with 600 ohm load
Dynamic Range
115 dB minimum (trim fully down)
THD + Noise
0.007% typical (1 kHz, +4 dBu at Line out), 0.009 max (50 Hz to 20 kHz, +18 dBu at line out, fader fully up)
Output Noise
-100 dBu (-102 dBV) maximum (22 Hz - 22 kHz bandwidth, flat filter, master gain fully up, faders fully down)
L/R Gain Matching
+/- 0.1 dB (Mic In to Line Out)
Metering
40-segment, sunlight-viewable
Selectable peak, VU, or peak (with or without peak hold) + VU ballistics
High-Pass Filters
Switchable 80 Hz or 160 Hz, 12 dB/oct, silent activation
Mic Powering (each mic selectable)
none, 12 V phantom, 48 V phantom, 12 V T-power, selected per mic input
Input Limiters
+18 dBu threshold, 20:1 limiting ratio, 1 mS attack time, 200 mS release time.
Output Limiters
Affects the outputs of the mixer.
Threshold selectable from +4 dBu to +20 dBu, 1 dB steps, 20:1 limiting ratio, 1 mS attack time, 200 mS release time
Power supply
Internal +/-16 V (bi-polar) regulated audio rails, 2.4 - 6 V range internal batteries, isolated (floating) external DC input jack, 5-18 V
locking 4-pin Hirose connector, pin-4 = (+), pin-1 = (-)
Temperature
Operating: -4 to 140°F / -20 to 60°C
0 to 95% Relative Humidity; (non-condensing)
Storage: -40 to 185°F / -40 to 85°C
Dimensions (H x W x D)
1.8 x 8.4 x 4.5" (4.7 x 21.4 x 11.4mm)
Weight
1.8 lbs (0.85kg)
