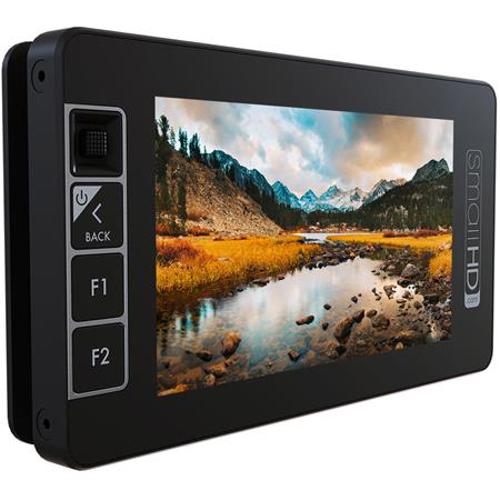

RENT SmallHD 503 5" UltraBright On-Camera LCD Monitor Features
SmallHD Premieres Brightest HDR Monitors with LEMO Power SmallHD introduces the new 5-inch and 7-inch UltraBright monitors with breakthrough viewing in full sunlight. They are designed to fill a variety of needs from a gimbal operator requiring a bright yet compact monitor, to a first AC pulling critical focus in all environments, or to show a director two camera angles at once.
The 503 displays a bright 2200-nits while the 703 displays 2500-nits. These on-camera monitors feature a 10-bit, 1920x1080 IPS LCD optically bonded Gorilla Glass screen with LEMO power. Plus, both 503 and 703 UltraBrights offer HDR Preview. For more accurate onset exposure adjustment, users may select Camera Input Gamma in the settings menu and individually tweak footage white point and black point via data values in the form of a histogram.
The UltraBright monitors have SDI and HDMI inputs and outputs featuring built-in cross conversion. A Dual View function allows either two SDI or an SDI and an HDMI input to be displayed side-by-side - an advantage for A/B camera set-ups or viewing LOG and DeLOG footage onset.
Like SmallHD's other monitors, a useful suite of tools is included in the UltraBrights, offering functions including 3D LUT support, HD Waveform and scopes, Focus and Exposure Assists, and PageBuilder OS that allows customizing menus to each camera operator's individual preference.
Engineered for professional power solutions, the 503 and 703 feature integrated 2-pin 12V LEMO input for powering the monitor and Native mounting solutions for both AntonBauer Gold/V-mount and Sony L-Series dual battery plates.
USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving
Power: Connector Type
2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
Power: Voltage
With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
Power: Recommended Power Supply
Included
Power: Overload Protection
Yes
Software: Pixel Zoom (type)
2x & 4x Zoom with smooth pan via joystick
Software: Frame Guides
Yes: Preset Aspect Ratios & Customizable
Software: DSLR Scale
Canon 5DMkii & Canon 7D
Software: Custom Scale
Yes (Underscan Only)
Software: Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Software: Image Rotate(Manual/Automatic)
Yes - Automatic or Manual Control
Software: Image Flip (Manual/Automatic)
Yes - Automatic or Manual Control
Software: Cross Conversion
Yes: HDMI -> SDI & SDI -> HDMI
Software: Focus Assist (Colors)
Yes - User Adjustable Color Style and Intensity
Software: Peaking
Yes - User Adjustable Intensity
Software: False Color
Yes - Rainbow & Arri Style
Software: Zebra
Yes - Dual - User Configurable
Software: Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Software: Vectorscope
Yes
Software: RGB Parade
Yes - Fully User Customizable
Software: Histogram
Yes - Luma & RGB Style
Software: Image Capture
Yes - With Dedicated Button
Software: Custom LUTS
Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
Software: LUT Downstream
Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
Software: LUT Import
via SD Card or USB Storage Device
Software: Image Overlay
Yes with Opacity Slider and Blink Setting
Software: Firmware
Compatible with 1300-1700-2400-3200 Firmware VX.x and later. Firmware Version to support 503UB & 703UB Does not yet exist. Version number not yet known.
Software: Audio Meters
Yes - HDMI & SDI up to 8 channel
Compliance
FCC, IC, CE, RoHS
Operating Temperature
0 to 100 deg. F (-18 to 38 deg. C)
Storage Temperature
-4 to 120deg. F (-20 to 49 deg. C)
Screen Protection
AR Coated Gorilla Glass Optical Bonding on Panel
Mount Points
11/4"-20 Thread on Top of Monitor, 1x1/4"-20 Thread on Bottom of Monitor, 1x1/4"-20 Thread on back of Monitor at Bottom Center
