Sony Sony Wireless Omni Lavalier Microphone System Kit
Sony : Picture 1 thumbnail Sony : Picture 2 thumbnail Sony : Picture 3 thumbnail Sony : Picture 4 thumbnail Sony : Picture 5 thumbnail Sony : Picture 6 thumbnail Sony : Picture 7 thumbnail
Sony

RENT Sony Wireless Omni Lavalier Microphone System Kit

SKU: R-~SOLAVKIT

First Day ?
Daily
Price		 3-Day Wknd
Price		 Weekly
Price
$28 $28 $84
$28.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $478.49 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

  • Sony LAV Transmitter
  • Sony URX-P03 Portable Tuner/Receiver, 42/51: 638-698MHz
  • Sony LAV Microphone
  • Sony EC-0.46BX 1.5' 3-Pole Locking 3.5mm Mini-Plug to XLR Male Cable
  • Hosa Technology 3' Stereo Mini Male to Stereo Mini Male 3.5mm TRS Cable #CMM103
  • Sony SMAD-P2 UWP Lav Shoe Mount Adapter for URX-P2 Receiver
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

Details

RENT Sony Wireless Omni Lavalier Microphone System Kit Features

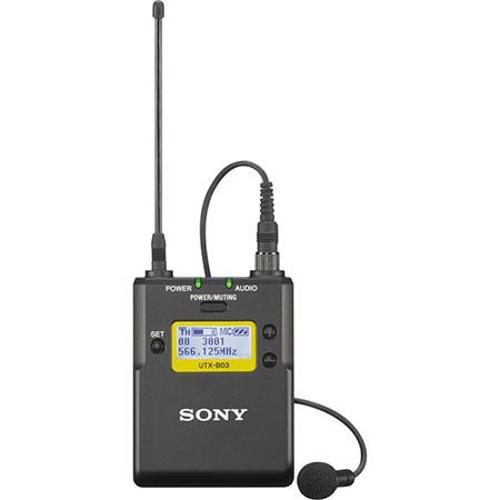

The Sony Digital Wireless Bodypack Transmitter is intended for use with Sony lavalier microphones such as the ECM-77BC/9x and features digital audio processing for lower noise and longer, efficient range. Up to three selectable output power settings are provided for maximum results and improved battery efficiency. Two AA alkaline batteries power the DWT-B01 for up to 10 hours at the 10mW power setting. Additional features include an input attenuator, RF frequency selection, RF power output, Audio LCF frequency and a power sleep mode(in the transmitter) that can be remotely controlled from the DWR-S01D digital wireless receiver.

Sony Wireless Omni Lavalier Microphone System Kit Specifications

Lavalier MicrophoneJump to...

Frequency Response
40 to 20,000 Hz
Directivity
Omnidirectional
Capsule
Condenser
Sensitivity
-43.0 dB +/-3.0 dB (1 kHz/Pa)
Dynamic Range
86 dB or more
Maximum Input
120 dB SPL
Power Requirements
5 VDC
Cable Length
3.9' (1.2m)

TransmitterJump to...

Type of Transmitter
Crystal-controlled UHF PLL-synthesized bodypack transmitter
Antenna
1/4 wave length wire
Emission
F3E
Carrier Frequency Range
638 to 698 MHz
RF Bandwidth
60 MHz
RF Power
30 mW / 5 mW
Type of Input Connector
Mic/Line Switchable - 3-pole locking mini microphone connector (3.5 mm)
Interchangeable Mic Heads
Compatible with any microphone that features a mini (3.5mm) connection
Reference Input Level
Mic: -60 dBV (at 0-dB attenuator level)
Line: +4 dBu
Attenuation / Gain
Mic: 0 to 21 dB (in 3 dB steps)
Frequency Response
23 to 18,000 Hz (typical)
Signal to Noise Ratio
96 dB (max deviation, A-weighted)
Audio Delay
Approximately 0.35 msec
Pilot Tone
32 kHz / 32.382 kHz / 32.768 kHz
Display
LCD
Power Requirements
3.0 VDC (with two AA-size alkaline LR6 batteries)
5.0 VDC (via USB micro-B)
Battery Type/Approx. Life
Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77deg.F (25deg.C) at 30 mW output
Operating Temperature
32 to 122deg.F (0 to 50deg.C)
Storage Temperature
-4 to 131deg.F (-20 to 55deg.C)
Dimensions
2.48 x 3.23 x 0.79" (6.3 x 8.20 x 2.0cm) (W x H x D)
Microphone Head Size: 0.27 x 0.77" (0.68 x 1.96cm)
Weight
5.26 oz (149.12g) (with batteries)

URX-P03 ReceiverJump to...

Compatibility
For use with UWP-D, UWP and WL-800 Series wireless products operating on the same frequencies
Receiving Channels
638 MHz - 698 MHz (TV channels 42 - 51)
Audio Output Connector
Two alternative cables supplied provide XLR or 1/8" stereo mini
Power Requirements
DC 3V with two AA batteries
DC 5V via USB micro-B
Battery Life
6 hrs
Dimensions
2.5 x 3.25 x 0.93" (6.35 x 8.25 x 2.36cm)
Weight
6.2 oz (175.76g) (including batteries)
