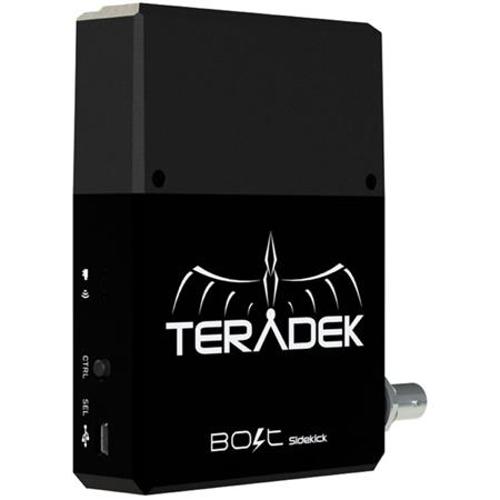

Teradek radek Bolt Sidekick II 3G-SDI Receiver
Teradek : Picture 1 thumbnail Teradek : Picture 2 thumbnail Teradek : Picture 3 thumbnail Teradek : Picture 4 thumbnail Teradek : Picture 5 thumbnail

RENT Teradek Bolt Sidekick II 3G-SDI Receiver

SKU: R-~TESDK2WVR

First Day ?
Daily
Price
3-Day Wknd
Price
Weekly
Price
$50 $50 $150
$50.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $1,819.45 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

  • Teradek Sidekick II SDI WLS Video Recvr
  • Teradek 18 Watt AC Adapter 6' Cable to 2-pin Lemo
  • Teradek 18" 2-Pin Lemo to PowerTap Adapter Cable
  • Belden 3' 3G-SDI BNC Cable
  • Teradek TX/RX 1/4-20" Thumb Screw
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

RENT Teradek Bolt Sidekick II 3G-SDI Receiver Features

The Teradek Bolt Sidekick II 3G-SDI Video Receiver is specifically designed for use with handheld director’s monitors. Its compact, low-profile build helps keep the entire monitor setup lightweight and portable. It features an SDI output for easy connection to your monitor of choice and uses Teradek’s standard 2-pin LEMO connector for power-either via the included power supply or an external battery (with an optional cable). The SDI output also supports test signal output, as well as timecode and start/stop metadata. Compatible with the Bolt 500, 1000, and 3000 transmitters, the Sidekick II offers a consistent 300-foot line-of-sight wireless range regardless of the transmitter used.

RENT Teradek Bolt Sidekick II 3G-SDI Receiver Specifications

Video Outputs
3G/HD/SD-SDI:BNC
SDI Ancillary Data Support
Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers
Input/output
3G-SDI
Color Sampling
For SDI: YCbCr 4:2:2, 10-bit
Supported Resolutions
Resolution Frame Rate Summary: 1080p60
Supported Input Resolutions
1080p60/59.94/50/30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480p59.94/576p50 (via HDMI ports only)
480i(NTSC)/576i(PAL)
Video Compression
Visually lossless
Test Pattern Generator Support
Custom output formatted test pattern over HDMI and SDI
Audio Compression
48KhZ 24-bit PCM
Construction
Milled Aluminum(Chassis) and regulation-compliant PCB
Plastic Cap
Configuration Interfaces
On Screen Display on Video Output, Windows/Mac Desktop configuration utility
2qA
On/Off and Reset Switch
Desktop App
Feature-rich Bolt Manager Application for OSX & Windows
USB Interface Functionality
Upgrade via Mini-USB
Wireless
5GHz (20&40Mhz), DFS Frequencies Available
RF Channel Selection
Auto only (NOT configurable)
Encryption
AES-128
RF Power
15dBm EIRP
Range Summary
300' / 91.44m
Range
Up to 300' (91.44m) line of sight
Unicast Multicast
1 Bolt TX can transmit to a maximum of 4 RX
Noise Rejection
Can coexist with Wi-Fi and 5GHz cordless phones
Number Of 20MHz Channels
0
Number Of 40MHz Channels
11
Power Input
2-Pin Connector 7-17 VDC
Nominal Power Consumption
6.9 Watts (Measured at 1080p60)
Operating Temperature
0 to 40 deg. C / 32 to 104 deg. F
Dimensions
0.98 x 3.37 x 4.49" (25.0 x 85.5 x 114.0mm)
Weight
10.16oz (288g)
