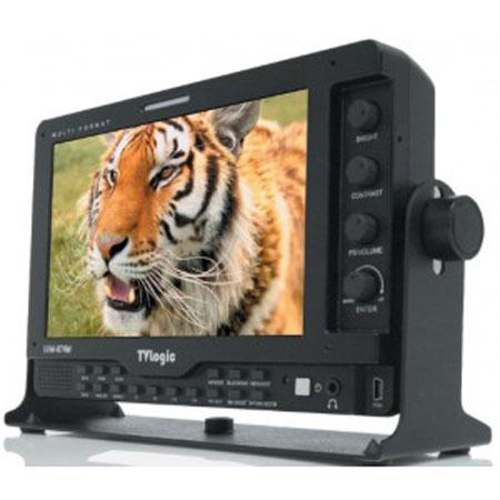

RENT TV LOGIC 7.4" LVW-074W LCD Monitor Kit (No Battery)

SKU: R-~TVLOGIC74

First Day ?
Daily
Price		 3-Day Wknd
Price		 Weekly
Price
$100 $100 $300
$100.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $2,516.35 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

  • TV Logic 7" Full HD LCD Monitor
  • TV Logic AB Gold Mount Bracket for 074W
  • TV Logic Hoodman for 7.4" Monitor
  • TV Logic Acrylic Screen for 7.4" Monito
  • (2) x Dtap-Mini XLR 17" Powercable
  • Noga 1/4"-20 Hold-It Articulating Cine Arm
  • (2) x 3' HDMI Cable A to A
  • Belden 3' 3G-SDI BNC Cable
  • Belden 10' 3G SDI BNC Cable
  • TV Logic 5.6" AC Adaptor
  • Power Cable IEC 60320 110/250VAC
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

Details

RENT TV LOGIC 7.4" LVW-074W LCD Monitor Kit (No Battery) Features

TVLogic LVM-074W 7" Multi-Format HD LCD Monitor features waveform/vectorscope, built-in HDMI to HD-SDI conversion output, horizontal and Vertical Image Flip, Focus Assist and Audio Level Meter. The user selectable Temperature Adaptive Color function measures LCD panel temperature and automatically compensates the white balance drift caused by a cold or hot weather.

Specifications

RENT TV LOGIC 7.4" LVW-074W LCD Monitor Kit (No Battery) Specifications

Monitor Size
7"
Resolution
1920 x 1080 (16: 9)
Pixe Pitch
0.081mm
Color Depth
16.7M
Viewing Angle
170 deg. (H) / 170 deg. (V)
Luminance
600cd/m2
Contrast Ratio
800:1
Display Area
155(H) x 87(V) mm
Input
3x BNC Analog Input (Component)
2x BNC 3G-SDI A/B Channel Input
1x HDMI HDMI Input
Output
1x BNC 3G-SDI Output
1x HDMI HDMI Output
Audio
Audio In: Embedded Audio/Analog Stereo (Phone Jack)
Audio Out: Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Temperature Adaptive Color, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom
Closed Caption
CC-608 ANC, CC-608 LINE 21, CC-708
Other Functions
REMOTE: TVLogic's specification
USB: Firmware update by USB cable
Ethernet: Ethernet Control support
Conversion: HDMI-to-HDMI, HDMI-to-SDI, SDI-to-SDI
