Angenieux nieux EZ-3 45-165mm T2.3 S35 Cine Zoom Lens for PL Mount

RENT Angenieux EZ-3 45-165mm T2.3 S35 Cine Zoom Lens for PL Mount

SKU: ~ANGEZ3S35PL

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

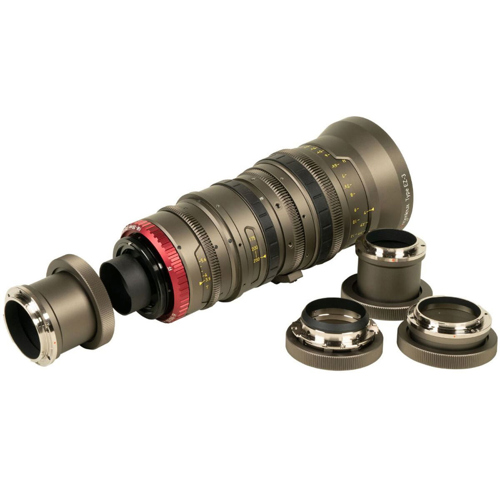

This Kit Includes

  • Angenieux EZ-3 LENS
  • Angenieux EZ PL Mount
  • Angenieux EZ3 Rear (S35)
  • Wooden Camera 15mm Lightweight Universal Lens Support
  • (2) x 15mm Ultra Rod, 12" Length
  • InnerSpace Case for Angenieux UC 21-56mm
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

RENT Angenieux EZ-3 45-165mm T2.3 S35 Cine Zoom Lens for PL Mount Features

Make your cinematic vision a reality with the EZ-3 Super35 Cinema Zoom Lens , featuring the 45-165mm T2.3 Lens for PL Mount. This offers Angenieux's unique Interchangeable Rear Optics (IRO) system, a compact solution that provides dual sensor-format compatibility. It includes screw-mounted S35 real optical blocks, which can be conveniently changed in the field by users.

The full-frame rear group doubles as a 1.5x extender for S35 capture, ensuring no crop factor. The EZ-3 zoom lens comes with an ARRI PL mount, which can be replaced with separately available Sony E, Canon EF lens mounts. This interchangeability ensures compatibility with a broad spectrum of cameras, making this lens kit a versatile choice for filmmakers.

The EZ-3 zoom's Focus/Iris/Zoom gears align with the EZ-1 and EZ-2, allowing the use of the same accessories. This zoom is also compatible with the Angenieux MSU-1 and MSU-1A servo units for ENG-style use.

RENT Angenieux EZ-3 45-165mm T2.3 S35 Cine Zoom Lens for PL Mount Specifications

Focal Length
45-165mm
Maximum Aperture
T2.3 to 3
Lens Mount
PL Mount
Interchangeable Mount
Yes
Lens Format Coverage
Super35/APS-C
Image Circle
46mm
Angle of View
Super 35
Horizontal: 86 Degree F to 47.12 Degree F (30 Degree to 8.4 Degree)
Vertical: 62.24 Degree F to 40.64 Degree F (16.8 Degree to 4.8 Degree )
Focus Scales
Metric, Imperial
Filter Thread
105mm
Zoom Ratio
3.7x
Minimum Focus Distance
From Unspecified Point in Lens: 4' (121.9cm)
Image Stabilization
No
Lens Mounting
1x 3/16" (via Included Support Foot)
Gear Standard
0.8 MOD
Gear Rotation
Focus 300 Degree
Electronic Communication
No
Coatings
Multi-Coating
FOV at MOD at focal Min
Super 35: 370 x 103mm
FOV at MOD at focal Max
Super 35: 303 x 80mm
Dimensions (Dia. x L)
4.5 x 10.4" (114 x 26.4cm)
Weight
5.7 lbs (2.6kg)
