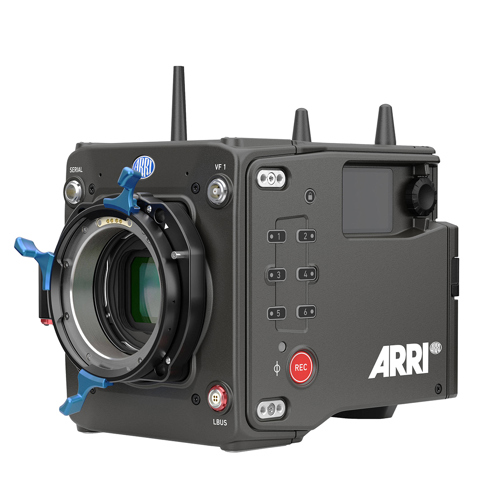

ARRI  ARRI ALEXA 35 Kit & PL and LPL Mount (Gold Mount Battery)
ARRI : Picture 1 thumbnail ARRI : Picture 2 thumbnail

RENT ARRI ALEXA 35 Kit & PL and LPL Mount (Gold Mount Battery)

SKU: ~ARRI35GOLD

First Day ?
Daily
Price
3-Day Wknd
Price
Weekly
Price
$2,500 $2,500 $7,500
$2,500.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $64,596.18 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

  • ARRI ALEXA 35 Camera Body
  • ARRI ALEXA Mini LF Multi Viewfinder MVF-2
  • (2) x ARRI Cable VF Right Angle (1.5')
  • ARRI LPL Mount for ALEXA Mini/AMIRA
  • ARRI PL to LPL Adapter
  • ARRI Power Distribution Module PDM-1 for ALEXA 35
  • Core SWX Helix Gold Mount Battery Plate for ARRI Alexa 35 Camera
  • ARRI CODEX Compact Drive Dock (Thunderbolt 3)
  • AKiTiO 1.6' USB-C Male Cable for Thunderbolt 3 Enclosure
  • Codex AC Power Adapter for Thunderbolt
  • (2) x ARRI Codex Compact Drive 2TB
  • (2) x ARRI Codex Compact Drive Case 1 or 2 TB
  • Wooden Camera A-Box Adapter for ARRI Alexa Mini LF
  • Teradek Small Antenna
  • ARRI 221W 24V Power Supply
  • ARRI ALEXA Mini/AMIRA KC-50 Power Cable
  • HOUSE OF POWER 4' 3-Pin XLR 24V Power Cable
  • (2) x Power Cable IEC 60320 110/250VAC
  • AC Cord for Most Chargers (2-Pin)
  • ARRI Articulated Mounting Plate AMP-1 for ALEXA 35
  • ARRI Rod Mounting Bracket RMB-7
  • ARRI Square Accessory Sleeve SAS-1 for ALEXA 35
  • ARRI Viewfinder Mounting Bracket VMB-5
  • ARRI Center Camera Handle CCH-5 for ALEXA 35
  • ARRI Low Mode Support Plate LMS-4
  • ARRI Top Extension Bracket TEB-1
  • ARRI Camera Side Bracket CSB-1L for ALEXA 35 (Left Side)
  • ARRI Camera Side Bracket CSB-1R for ALEXA 35 (Right Side)
  • ARRI Balance Utility Dovetail BUD-1
  • ARRI Compact Bridge Plate CBP-5 for ALEXA 35 (19mm)
  • ARRI Bottom Dovetail Plate (12"/ 300mm)
  • InnerSpace Case ARRI ALEXA Super35
  • Core SWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries
  • (4) x Helix Max 150 148Wh Dual Voltage Gold Mount Li-Ion Battery
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

RENT ARRI ALEXA 35 Kit & PL and LPL Mount (Gold Mount Battery) Features

Already established as the industry’s camera system of choice, ALEXA 35 is now available to a wider range of users via a new, lower-priced ALEXA 35 Base model. The fully featured existing camera is the Premium model, while the Base model has a core feature set that can be upgraded via temporary or permanent licenses. Costs are further reduced with the new Codex Compact Drive Express for ProRes recording.


ARRI’s new feature licensing concept makes the Base model future-proof because users can unlock specialist features whenever they need them. Each of the licenses can be installed for seven days, 30 days, one year, or permanently, so owner-operators can activate them for a short-form job, a longer-term project, or a new career direction.


4.6K Super 35 ARRI ALEV 4 CMOS Sensor

Key to the ALEXA 35's amazing image quality is a new 4.6K Super 35 CMOS sensor offering 17 stops of dynamic range, which is a robust 2.5 stops greater than prior ARRI cameras. Those 2.5 stops are split between 1.5 stops at the top end, resulting in filmlike highlight roll-off, and 1 stop at the lower end to see even deeper into shadows without overexposing other areas. Ideal for HDR projects and any backlit setups,the ALEXA 35's wide dynamic range can also be a boon when tweaking your images in post.


Video Recording Formats

In-camera down-sampling and anamorphic de-squeezing enable the ALEXA 35 to offer a robust array of 19 ARRIRAW and Apple ProRes recording formats with different resolutions, data rates, aspect ratios, and other factors, suiting the camera to a range of production styles. Recording resolutions include 4.6, 4, 3.3, 3, 2.7, and 2K options.


Stray Light Suppression

Stray-light suppression technology is used in both the camera and the new ARRI PL (Hirose or LBUS) lens mounts to deliver the full contrast range from your choice of lenses while eliminating any grayish tones.


High ISO Camera

With an EI of 160 to 6400, the ALEXA 35 offers higher sensitivity and lower noise than ever before in the ARRI lineup, even in low-light settings. An optional Enhanced Sensitivity Mode (EI 2560-6400) works with the camera's wide dynamic range to produce nuanced images in darker environments and is ideal for impromptu or available-light capture.


The ALEXA 35 expands your creative control options using the new REVEAL color science, color matching with existing ARRI cameras, and multiple Texture Files that bestow an ability to select looks akin to choosing a film stock, both during capture and in post-production. Created with the input of both cinematographers and colorists, ARRI’s REVEAL color science employs six factors to create improved color, contrast, sensitivity, and dynamic range.


• A new debayering algorithm combines with the ALEXA 35’s impressive processing power to create cleaner-edged images that are perfect for compositing work

• The new ACE4 color engine converts RGB image data into the ARRI Wide Gamut color space (AWG4), producing more accurate colors and improving color saturation and tracking, even with subtle tones and lower light levels

• The AWG4 camera color space is larger than Rec. 2020 but bypasses "virtual" colors that are outside the human visual spectrum, providing faster grading, easier color space conversion, and compatibility with the ACES system

• A new Log-C 4 tonal curve enables the ALEXA 35’s larger 17-stop dynamic range; note that the Log-C 4 look appears darker before conversion to Rec. 709 or another color space

• New LUTs use the improved sensor, color space, and Log-C 4 to produce optimal shadow tonality, color fidelity, and color-grading base. These new LUTS must be used with Log-C 4; they do not offer the manual control that some used with Log-C 3

• The ALEXA 35 offers backward compatibility for intercutting with ALEXA, ALEXA Mini, and AMIRA images, and the ALEXA Mini LF and ALEXA LF images may be processed via REVEAL to match your ALEXA 35 footage. Processed images will not offer the higher dynamic range or ARRI Textures but will have cleaner edges, better color, easier grading, and ACES, Log-C 4, and new LUT compatibility

ARRI ALEXA 35 Kit & PL and LPL Mount (Gold Mount Battery) Specifications


ImagingJump to...

Lens Mount
ARRI LPL
ARRI PL with Included Adapter
Lens Communication
Yes
Image Sensor
Super35 CMOS
Pixel Pitch
6.075 microm
Image Stabilization
No
Built-In ND Filter
Mechanical Filter Wheel with Clear
2-Stop (1/4)
4-Stop (1/16)
6-Stop (1/64) ND Filters
Internal Filter Holder
No
Capture Type
Video Only

Exposure ControlJump to...

Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/8000 to 1 Second
ISO Sensitivity Range
160 to 6400
Shutter Angle
5 to 356 Degree
Advertised Dynamic Range
17 Stops

Video CaptureJump to...

Internal Recording Modes
ARRIRAW<
4608 x 3164 from 0.75 to 75 fps
4608 x 2592 from 0.75 to 75 fps
4096 x 2304 from 0.75 to 120 fps
4096 x 2048 from 0.75 to 120 fps
3328 x 2790 from 0.75 to 100 fps
3072 x 3072 from 0.75 to 100 fps
Internal Recording Modes (Contd.)
MXF/ProRes 422 HQ/ProRes 4444/ProRes 4444XQ
4608 x 3164 from 0.75 to 59.94 fps
4096 x 2304 from 0.75 to 100 fps
4096 x 2048 from 0.75 to 120 fps
3840 x 2160 from 0.75 to 120 fps
3328 x 2790 from 0.75 to 75 fps
3072 x 3072 from 0.75 to 90 fps
2048 x 1152 from 0.75 to 120 fps
1920 x 1080 from 0.75 to 120 fps
External Recording Modes
No
Recording Sensor Crop
Crops to Output Resolution in All Recording Modes
Fast-/Slow-Motion Support
Yes
Gamma Curve
ARRI Log C4, Rec 2100 HLG, Rec 2100 PQ, Rec709, Rec2020
Built-In Microphone
Stereo
Audio Recording
4-Channel 24-Bit 48 kHz LPCM Audio
IP Streaming
No

InterfaceJump to...

Media/Memory Card Slot
Single Slot: Codex Compact Drive
Video I/O
1x BNC (12G-SDI) Output
1x BNC (12G-SDI) Input/Output
Audio I/O
1x LEMO 6-Pin Line Input
1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output
Power I/O
1x LEMO 8-Pin (20.5 to 33.6VDC) Input
Other I/O
2x CoaXPress Viewfinder
1x LEMO 4-Pin Control Input/Output
1x LEMO 4-Pin (Serial) Data Input/Output
1x LEMO 5-Pin (Timecode) Input/Output
1x LEMO 10-Pin (Ethernet) Control
1x BNC (Sync) Input/Output
1x USB-C Data Input/Output
1x Pogo 5-Pin
1x pogo 18-Pin
Wireless
Wi-Fi (802.11b/g) Control
Mobile App Compatible
Yes: iOS & watchOS
Global Positioning
No (GPS, GLONASS, etc.)

ViewfinderJump to...

Type
Removable Electronic (OLED)
Resolution
1920 x 1080
Focus Type
Manual Focus Only

EnvironmentalJump to...

Operating Temperature
-4 to 113 DegreeF (-20 to 45 DegreeC)
Storage Temperature
-22 to 158 DegreeF (-30 to 70 DegreeC)

GeneralJump to...

Power Consumption
90 W
Tripod Mounting Thread
1/4"- 20 Female
3/8"- 16 Female
Material
Aluminum
Dimensions (W x H x D)
8 x 6 x 5.8" (20.3 x 15.25 x 14.7cm)
Weight
6.4 lbs (2.9kg)
