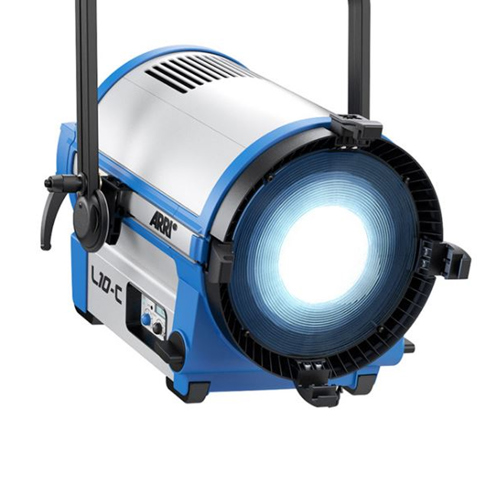

ARRI  ARRI L10-C LED Fresnel - 10 inch Lens - RGBW - Stand Mount Kit
ARRI : Picture 1 thumbnail ARRI : Picture 2 thumbnail ARRI : Picture 3 thumbnail ARRI : Picture 4 thumbnail

RENT ARRI L10-C LED Fresnel - 10 inch Lens - RGBW - Stand Mount Kit

SKU: ~ARRIL10C

First Day ?
Daily
Price
3-Day Wknd
Price
Weekly
Price
$270 $270 $810
$270.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $5,803.51 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

  • ARRI L10-C
  • Aputure 10" Barndoors for F10 Fresnel
  • Neutrik powerCON TRUE1 Power Adapter
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

RENT ARRI L10-C LED Fresnel - 10 inch Lens - RGBW - Stand Mount Kit Features

Color temperature, tint and hue can be continuously adjusted from 2800 K to 10000 K, between full plus or minus green and RGBW colors. The L10 is the brightest and largest L-Series lamp head to date. Its substantial 10 inch Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. At more than twice the brightness of the L7, the L10 is also one of the brightest LED Fresnels on the market.Tuneability is the cornerstone of all ARRI LED fixtures and much like the L7 and L5, its smaller counterparts, the L10 is fully color tuneable. With the ability to adjust the color temperature from 2800 - 10000 K, as well as the green/magenta point, users have complete control over the color output of the fixture.


In a robust housing that combines aluminum with high-strength, fiberglass-reinforced thermoplastics, the L10 is designed to withstand the stresses of diverse professional environments, from motion picture sets to television studios and everything in-between. This robust construction allows the L10 to live up to the benchmark of rugged durability set by other ARRI lighting fixtures.


Stand-Mount

versions include the following base configuration: 28mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.


Hanging

versions include the following base configuration: 28mm Spigot (Junior Pin), 1.5m (5') Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.


Pole-Operated

versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28mm Spigot (Junior Pin), 1.5m (5') Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.


Additional Features

• Fully Tuneable from 2800 K - 10000 K

• Plus/Minusgreen correction

• Vibrant Color Selection (RGB+W Color Gamut)

• Hue and Saturation Control

• High Color Rendering

• Low Power Consumption (400 W Nominal)

• Fully Dimmable

• True Fresnel Lens Light Characteristics

• Onboard DMX In and Out

• RDM Implementation

• USB Mini Connection for Firmware Updates

• Fan Mode Selection

RENT ARRI L10-C LED Fresnel - 10 inch Lens - RGBW - Stand Mount Kit Specifications

Optical System
Focusable Fresnel
Lens Diameter
10.79" (274mm)
Beam Angle
15 deg. - 50 deg. (Half Peak Angle)
Handling
Adjustable Sliding Stirrup, High Strength Tilt Lock
Mounting
28mm Spigot (Junior Pin)
Tilt Angle
+/- 90 deg.
Power Supply Range
100 - 250 V AC, 50 - 60Hz
Power Consumption
400W (Nominal)
510W (Maximum)
Power Connection
powerCON TRUE1 (Bare Ends)
White Light
2800 K - 10000 K Continuously Variable Correlated Color Temperature
Colored Light
Full RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance
+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition
CRI Average >95 (3200 K to 6500 K), TLCI Average >91
Green-Magenta Adjustment
Continuously Adjustable (Full Minusgreen to Full Plusgreen)
Dimming
0 - 100% Continuous
Control
5-Pin DMX In and Through, On-Board Controller, Mini-USB
Remote Device Management (RDM)
DMX Setup, Hour Counter and Standard RDM Commands
Mini-USB Interface
DMX Setup, Fixture Status and Firmware Upgrade Through PC Software
Ambient Temperature Operation
-4 to 113 deg. F (-20 to 45 deg. C)
Protection Class
IP 20
Estimated LED Lifetime (L70)
50000 hours
Estimated Color Shift Over Lifetime
< 200 K
Certifications
Pending CE, GS, FCC, cNRTL, CB
Weight
43.4 lbs (19.69kg)
