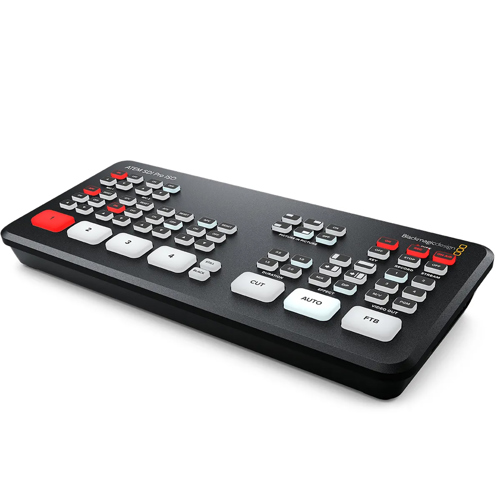

RENT Blackmagic Design ATEM SDI Pro ISO Live Production Switcher Features
Experience the power and versatility of the ATEM SDI Pro ISO Live Production Switcher, a professional-grade, high-quality, and durable solution for your live production needs. This innovative switcher is designed by Blackmagic Design, a leading brand in the video equipment industry, known for its affordability and superior quality.
The ATEM SDI Pro ISO Live Production Switcher is more than just a live production switcher. It offers built-in streaming and recording capabilities, allowing you to capture up to 5 video streams in real time. This feature makes it an ideal choice for multi-camera editing, providing a clean feed of all inputs.
With this switcher, you can easily open your live production in DaVinci Resolve for editing, remixing audio, and adding color correction. The ATEM SDI Pro ISO Live Production Switcher is part of the ATEM SDI family, designed for broadcasters who require extreme portability without compromising on advanced broadcast features.
The ATEM SDI Pro ISO model comes with 4 SDI inputs and all SDI inputs feature standards converters and re-sync. It also includes DVEs for picture-in-picture effects. The USB functionality allows the switcher to work as a webcam, connecting video to computers, making it a versatile tool for live streaming.
The Pro and Extreme models of the ATEM SDI Pro ISO Live Production Switcher feature built-in streaming capabilities. The Fairlight mixer included in the switcher provides a compressor, limiter, and 6 band parametric EQ on each input, ensuring high-quality audio output.
This switcher is not just about advanced features; it's also about ease of use. The compact all-in-one design includes a control panel and connections. The front panel features easy-to-use buttons for selecting sources, video effects, and transitions. The rear panel houses SDI connections for cameras, extra microphone inputs, USB for webcam, and multiple SDI "aux" outputs for program video.
The ATEM SDI Pro ISO Live Production Switcher supports direct recording of your streaming data to USB flash disks. It also allows you to edit your live event with separate ISO recordings, providing clean feeds of all inputs and program. The ISO models save a DaVinci Resolve project file, allowing you to open your live production as a video edit with a single click.
Whether you're broadcasting a live event, conducting remote interviews, or streaming a performance, the ATEM SDI Pro ISO Live Production Switcher offers a new level of professional multi-camera broadcast quality. Experience the creative freedom of multi-camera live production with the ATEM SDI Pro ISO Live Production Switcher.
Blackmagic Design ATEM SDI Pro ISO Live Production Switcher Specifications
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
ATEM SDI Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB-C.
USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video Recording
4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio Recording
6 x 2 channel audio inputs recorded as separate 24-bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs.
Switching
Program switching recorded as a DaVinci Resolve project .drp file.
Media Format
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Built in control panel. Software control panel with camera control included. Supports optional hardware panel
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Control Panel Compatibility
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM SDI Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel Included
ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 64 bit or Windows 11
