RENT DJI Transmission Standard Combo Kit

DJI Transmission Vision Beyond Boundaries
DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder. It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries.

Combo, Diverse Capabilities
DJI Transmission (Standard Combo) is out now! The DJI Transmission series is now available in a Standard Combo, meeting the needs of diverse shooting scenarios.

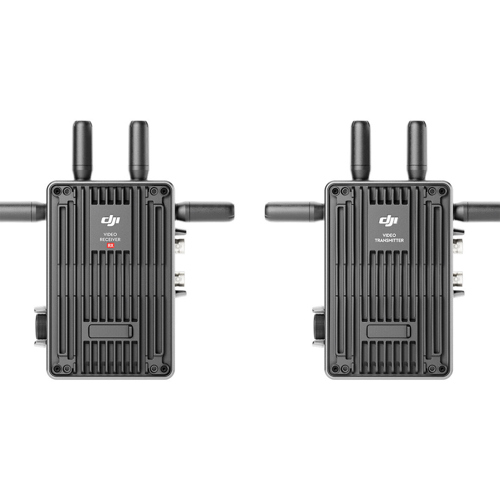

DJI Transmission (Standard Combo)
Includes a DJI Video Transmitter and a DJI Video Receiver.

This combo delivers extended-range, low-latency transmission, making it especially suitable for use with production monitors. It also now supports metadata transmission via SDI in addition to the output of fractional frame rates.

A New Era Transmission Performance

Long-Distance HD Live Feed
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 3.72 miles (6km/20,000ft) on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 50Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.

Seamless Auto Frequency Hopping
O3 Pro adds DFS bands on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

With a built-in frequency sweeper, users can even manually select the optimal channel to avoid interference between devices.

By mounting high-gain antennas, transmission capability is further boosted.

One Transmitter with Multiple Receivers
Both the High-Bright Remote Monitor and the Video Receiver support one transmitter with multiple receivers for video and audio feeds in two transmission modes. The default Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams such as lighting, art department, and makeup on sets with large crews, and a live feed's bitrate and input feed's video codecs can be displayed in real-time as well. If you want to switch camera index for monitoring, simply select the corresponding index without having to check the transmission channel, which greatly enhances the shooting efficiency.

To connect to DJI Master Wheels or other control devices, select Control mode on the High-Bright Remote Monitor or the Video Receiver and pair it with the Video Transmitter. Then, Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely on up to two receiving ends while not affecting other devices connected via Broadcast mode. In addition, the Video Receiver supports voice calls for real-time, one-on-one, ultra-long-distance voice transmission, providing seamless communication between the cinematographer and the director or client.

Transmission of Metadata
The DJI Video Receiver supports camera metadata transmission via SDI. When used with ARRI, RED, and other mainstream cinema cameras, it can transmit file name, timecode, recording trigger, camera settings (aperture, focal length, etc.), and lens information (aperture, focal length) from the receiver to monitors and QTAKE, allowing directors, cinematographers, and DIT teams to receive detailed shooting information on set.

Encrypted Transmission
DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.

Boxue Wang, Director of Photography
DJI Transmission not only optimizes the filmmaking process, but also frees us from the hassles of cables and limitations in distance. It's really thoughtful of DJI to focus on making assistance tools for filmmaking. Details are what truly promote the industrialization of cinematography.

Known for: Nice View, Dying to Survive, The YinYang Master

Works with the DJI Ecosystem Expansive Control Options

Compatible with DJI Master Wheels and DJI Force Pro
Video Receiver can be used with DJI Master Wheels, to achieve more advanced gimbal control when using Ronin 2 or RS 3 Pro. In this scenario, the original equipment will transmit control signals directly through DJI Transmission, with no need for additional mounting of antennas on DJI Master Wheels. This boosts the transmission performance by three times and enhances signal range, stability, and anti-interference capabilities.

DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub
With the DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub, you can connect the DJI Video Transmitter to the DJI LiDAR Range Finder (RS) and DJI RS Focus Motor (2022) to experience an independent focusing and monitoring system, and achieve lens calibration and autofocus with a manual lens without the need for connecting to RS 3 Pro. Connect it to the Ronin 4D Hand Grips, and you will have LiDAR waveform to facilitate precision manual focusing.

Additionally, when connecting to DJI RS 3 Pro, it gives you an entire set of shooting solutions that integrates stabilization, remote monitoring, gimbal control, and LiDAR focusing.

• Without Stabilizer
• With Stabilizer

Mirror Control Mode
When RS 3 Pro is mounted to jibs, cable cams, and vehicles, with Mirror Control mode, you can remotely control the menu of Sony mirrorless cameras from anywhere on set.

All In One Ports and Power Supply
Video Transmitter Ports
• 3G-SDI Loop Out Port: Supports output of 1080p/60fps videos
• 3G-SDI Input Port: Supports input of 1080p/60fps videos
• HDMI 1.4 Type-A Input Port: Supports input of 1080p/60fps videos

Video Receiver Ports
• 3G-SDI Output Port: Supports output of 1080p/60fps videos
• HDMI 1.4 Type-A Output Port: Supports output of 1080p/60fps videos

Direct Power Supply by Gimbal
DJI Transmission can pair with Ronin 2 or RS 3 Pro for a customized shooting solution. The Video Transmitter can be mounted directly to the cold shoe on the bottom of the gimbal and powered by it directly without additional batteries.

• Mounted on Ronin 2
• Mounted on RS 3 Pro

Other Power Supply Solutions

WB37 Power Supply
The Video Transmitter and the Video Receiver are all compatible with the DJI WB37 Battery.

NP-F Power Supply
The Video Transmitter and the Video Receiver can use the included NP-F Battery Adapter to use universal batteries.

DC-IN Power Supply
For a continuous power supply of the Video Transmitter, High-Bright Remote Monitor and the Video Receiver, a P-TAP to DC-IN power cable can be used to connect to an external power source.
