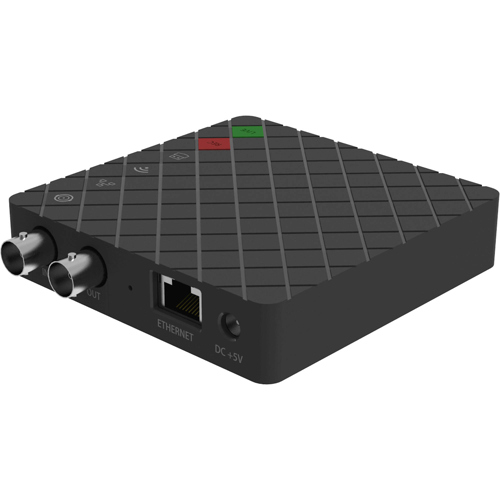

A dedicated SDI streaming encoder with loop-through • Live streaming to popular services such as Facebook Live, YouTube or Twitch • Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams • Records video to the internal storage, a connected USB drive or an associated smartphone • On-device controls plus intuitive smartphone app and browser-based web UI
SDI Specific Features • Support for up to 2048x1080 60fps input and loop-through signals
Audio Input/Output • Add narration through the analog microphone input • Monitor the input signal through the analog headphone output
Encoding Features • H.264 or HEVC (video) and AAC High Quality (audio) encoding; Video bitrates up to 8Mbps
Streaming Features • Stream to servers or platforms based on RTMP or RTMPS protocol • Stream to 2 servers simultaneously • Support for RTSP protocol
Recording Features • Record to internal storage (32GB), USB flash drive or the associated smartphone • Record as MP4 or MOV files
Others • Internet connectivity via wired Ethernet, Wi-Fi or optional 3G/4G modem support • Control via on-device buttons, intuitive smartphone app or browser-based interface • HTTP-based APIs for custom integration
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps H.264/H.265(HEVC) video encoders Encoding 2-channel AAC at 48kHz, 16-bit Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps Extracting audio from SDI signal and output through 3.5mm headphone Encoding videos after de-interlacing
Streaming Features
Natively support streaming to Facebook, Twitch and YouTube Supported streaming protocols including RTSP/RTMP/RTMPS Up to 2 streaming sessions simultaneously
Recording Features
Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously When recording to a USB Flash Drive: support auto-recording, normal recording recording as MP4 or MOV files Recording duration can be 5/10/30/40/50/60/90/120 min Downloading recorded videos via WebUI
Recording Features (Contd.)
When recording to internal SD storage (32GB): support auto-recording, loop-styled or normal recording recording as MP4 or MOV files Recording duration can be 5/10/30/40/50/60/90/120 min uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI Downloading recorded videos via WebUI
Recording Features (Contd..)
When recording to paired mobile device: recording as MP4 files taking still image snapshots during recording timer recording at 15s, 30s, 1min, 2min, 5min
Configuration Management
Register with 2 Control Hub platforms Remote control via Application, WebUI and Control Hub Provide comprehensive information regarding the system information of device and working status in real-time
Configuration Management (Contd.)
Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time Update firmware WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers Provide HTTP APIs
Network
Wired Ethernet network: 10/100/1000Mbps Wi-Fi 802.11 a/b/g/n/ac 3G/4G USB mobile broadband Modem (not included) Bluetooth 4.0 BLE
LED Indicators
Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive Indicate the working state of the device: startup, recording, streaming, updating
Power Supply and Consumption
DC 5V/2A Max power consumption: -7.2 W
Working Environment
Operating temperature: 32 Degree F to 104 Degree F (0 to 40 deg C) Storage temperature: -4 Degree F to 158 Degree F ( -20 to 70 deg C) Relative humidity: 5% to 90% non-condensing
