Motorola orola CP200D Walkie Kit (2)

RENT Motorola CP200D Walkie Kit (2)

SKU: ~MOCP200DKT2

First Day ?
Daily
Price
3-Day Wknd
Price
Weekly
Price
$30 $30 $90
$30.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $822.90 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

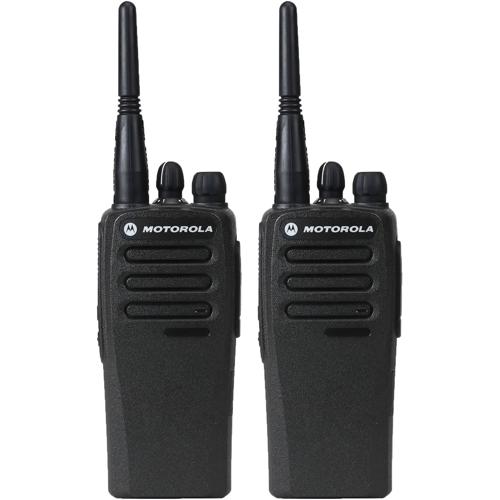

  • (2) x Motorola CP200D 4W 16-Channel Two-Way Non-Display UHF Analog/Digital Radio
  • (2) x Motorola CP200/D Li-Ion Battery
  • (2) x Motorola Antenna - Stamped Meta
  • (2) x Klein Electronics 2-Wire Surveillance Earpieces
  • (2) x Otto Exellence Quick Tube Clear Eartip
  • (2) x Motorola Rapid 90 Minute - 1 Unit Charger
  • (2) x Motorola Walkie Single AC Adapter
  • (2) x AC Cord for Most Chargers (2-Pin)
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

RENT Motorola CP200D Walkie Kit (2) Features

he VHF-band Motorola MOTOTRBO CP200d analog two-way radio provides a cost-effective entry into the MOTOTRBO line and the option to unlock highly beneficial digital technology later on through a simple software upgrade, making it advantageous for business applications such as construction, manufacturing, security, and more. This rugged radio is IP54 rated for reliable use in a variety of indoor and outdoor environments, and its 9.5-hour battery life (with the supplied battery) ensures dependability for long shifts. The CP200d features 16 channels, selectable 1W or 5W output power, and automatic gain control, allowing consistent and intelligible communication with increased coverage area. It also supports the Radio Management Suite for efficient batch programming of multiple radios. Thanks to its compatibility with a range of separately available batteries, chargers, headsets, earpieces, and surveillance kits, the CP200d can be adapted for optimal performance in numerous configurations.

GeneralJump to...

Channel Capacity
16
Typical RF Output
Low Power: 1 W
High Power: 4 W
Frequency
403-470MHz
Power Supply
7.5V (Nominal)
FCC Description
ABZ99FT4094
IC Description
109AB-99FT4094

ReceiverJump to...

Frequency
403-470MHz
Channel Spacing
12.5 kHz / 25 kHz3
Frequency Stability
+/- 0.5 ppm (-30 Degree C, +60 Degree C, +25 Degree C Ref)
Analog Sensitivity (12 dB SINAD)
0.3 uV / 0.22 uV (typical)
Digital Sensitivity (5% BER)
0.25 uV / 0.19 uV (typical)
Intermodulation (TIA603D)
70 dB
Adjacent Channel Selectivity (TIA603D)
45 dB @ 12.5 kHz / 70 dB @ 25 kHz3
Spurious Rejection (TIA603D)
70 dB
Audio Output Power
Rated: 0.5 W @ 1% distortion
Maximum: 2.1 W
Max Speech Loudness @ 30cm (ISO532b)
98 phon
Hum and Noise
-40 dB @ 12.5 kHz / -45 dB @ 25 kHz3
Audio Response
TIA603D
Conducted Spurious Emissions (TIA603D)
-57 dBm

TransmitterJump to...

Frequency
403-470MHz
Channel Spacing
12.5 kHz / 25 kHz
Frequency Stability
+/- 0.5 ppm (-30 Degree C, +60 Degree C, +25 Degree C Ref)
Low Power Output
1 W
High Power Output
4 W
Modulation Limiting
+/- 2.5 kHz @ 12.5 kHz / +/- 5.0 kHz @ 25 kHz3
FM Hum and Noise
-40 dB @ 12.5 kHz / -45 dB @ 25 kHz3
Conducted / Radiated Emission
-36 dBm < 1 GHz / -30 dBm > 1 GHz
Adjacent Channel Power
60 dB @ 12.5 kHz / 70 dB @ 25 kHz3
Audio Response
TIA603D
Audio Distortion
3% (typical)
4FSK Digital Modulation
12.5 kHz Data: 7K60F1D and 7K60FXD
12.5 kHz Voice: 7K60F1E and 7K60FXE
Combination of 12.5 kHz Voice and Data: 7K60F1W
Digital Vocoder Type
AMBE +2
Digital Protocol
ETSI TS 102 361-1, -2, -3

EnvironmentalJump to...

Operating Temperature
-30 Degree C - +60 Degree C (-22 Degree F - 140 Degree F)
Storage Temperature
-40 Degree C - +85 Degree C (-40 Degree F - 185 Degree F)
Thermal Shock
Per MIL-STD
Humidity
Per MIL-STD
ESD
IEC 61000-4-2 Level 3
Dust and Water Intrusion
IEC60529 - IP54
Packaging Test
Per MIL-STD

BatteryJump to...

High Cap Li-ion 2250 mAh Battery
Analog: 15.5 hrs
Digital: 19.5 hrs
Battery Info
Required, included
Battery Material
Lithium ion
Battery Type
Non-universal
Battery Quantity
1

PhysicalJump to...

Dimensions
With battery: 5 x 2.4 x 1.8" (127.7 x 61.5 x 44mm)
Weight
With battery: 12.2 oz (346g)
