RENT RED Digital Cinema V-RAPTOR XL 8K VV Cinema Camera Kit Features
• Multi-Format 8K VV + 6K S35 Sensor • Purpose-Built Unified Body • Industry Standard Integrated I/O Array • Robust Professional Interchangeable Lens Mount • All-New Integrated Electronic ND System • Powerful & Versatile 12V and 24V Outputs • Remote-Production Ready Wireless Timecode & Genlock • V-Lock Mount Power
- Overview -
Make your cinematic vision a reality with the V-RAPTOR XL 8K VV Cinema Camera Production Pack from RED DIGITAL CINEMA. This comprehensive package is designed to enhance the capabilities of the V-RAPTOR XL 8K VV camera, providing you with a robust selection of accessories to optimize your filming experience.

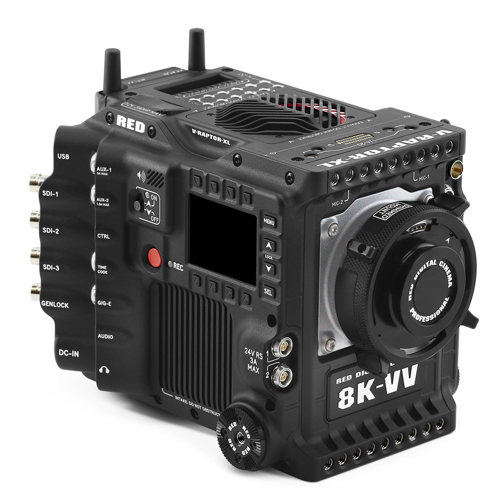

The heart of this package is the V-RAPTOR XL 8K VV Camera, a compact yet powerful device that offers multi-format recording in both 8K VV and 6K Super35. This camera is the successor to the V-RAPTOR and boasts an interchangeable lens mount, internal ND filters, and a V-Lock mount for power supply. The interface features three 12G-SDI outputs and 12 and 24V voltage output, ensuring versatility and convenience.
The package also includes the DSMC3 Touch 7.0" LCD Monitor, a high-definition display panel that offers an optimal viewing experience for recording and reviewing footage. With a resolution of 1920 x 1200, peak brightness of 1300 nits, and 100% DCI-P31 Color Gamut coverage, this monitor ensures tremendous color accuracy and clarity. The monitor is powered by SmallHD PageOS and offers full control over the camera, with features like Waveform, Vectorscope, Histogram, False Color, and more.
To enhance your data storage capabilities, the package includes two 2TB PRO CFexpress cards, designed in collaboration with Angelbird Technologies. These cards are CFexpress 2.0 Type B compliant and offer high bit-rate file recording with industrial-grade performance and durability. A CFexpress card reader is also included for easy data offloading.
The V-RAPTOR XL 8K VV Cinema Camera Production Pack also comes with four REDVOLT XL-G batteries and a dual-battery charger, ensuring you have the power you need for extended shooting sessions. A top handle with extensions, top and bottom XL 15mm LWS support brackets, a 5-pin to dual-XLR audio adapter, and an 18" DSMC3 RMI cable are also included, providing you with a comprehensive set of tools to enhance your filming experience.
Please note that certain components of this package, including the DSMC3 Touch 7.0" LCD Monitor, the PRO CFexpress 2TB Memory Card, and the V-RAPTOR Top Handle, are not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
RED Digital Cinema V-RAPTOR XL 8K VV Cinema Camera Kit Specifications
Motorized clear filter and precision controlled electronic ND filter Electronic ND minimum density 2 stops, maximum density 7 stops Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop
Mount Type
Interchangeable lens mount, included V-RAPTOR XL PL Mount (shimmable) Optional V-RAPTOR XL Locking Canon EF Mount Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control
Battery Type
Integrated Dual Voltage 14/26V V-Lock battery interface
Up to 800 MB/s using RED branded or other qualified CFexpress media cards
Redcode Raw Max Frame Rates
120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
Redcode Raw Max Frame Rates (Contd.)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
Redcode Raw Acquisition Formats
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
Apple Prores
Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096x2160) Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
Power Outputs
Regulated 12 V Outputs 2x P-TAP Connectors (3AMP Combined) 1x Rear 2-Pin 0B (3 AMP) 1x Rear 2-Pin 0B (1.5 AMP) 1x Front 2-Pin 0B (1 AMP) Regulated 24 V Connectors 2x Front 3-Pin Fischer (3 AMP Combined)
Monitor Outputs
Proprietary top accessory port for monitoring and control 3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes (SDI 1/2/3) 1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF) 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Monitor Options
Dsmc3 Red Touch 7.0" LCD IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet Integrated 2.4" LCD for camera control (no preview video)
Camera Sync Options
Tri-Level Genlock through BNC Linear Timecode (LTC) through 5-Pin 0B PTP through 9-Pin 0B GIG-E Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN)
Access full camera controls and live preview from iOS or Android devices. Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C or Ethernet
0 Degree C to 38 Degree C (32 Degree F to 104 Degree F)
Storage Temperature
-18 Degree C to 49 Degree C (-0 Degree F to 120 Degree F)
Operating Humidity
0% to 85%, non-condensing
Storage Humidity
0% to 85%, non-condensing
Firmware Requirement
Compatible with camera firmware V1.1 or later
Dimensions (H x W x D)
Monitor: 4.67 x 7.09 x 1.13" (118.7 x 180.1 x 28.8mm) Arm: 1.18 x 2.4 x 0.7" (30 x 61 x 17.5mm) RED Monitor Interface: 1.67 x 4.25 x 1.51" (42.5 x 108 x 38.23mm)
Weight
Monitor: Approx. 20 oz (568g) Arm: Approx. 1 oz (30.1g) RED Monitor Interface: Approx. 4.4 oz (126g)
