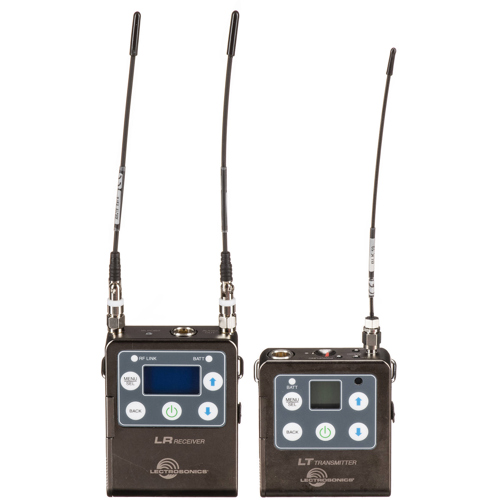

RENT Lectrosonics L Series ZS-LRLT Camera-Mount Wireless Omni Lavalier Microphone System (A1: 470 to 537 MHz)

The L Series units all share a wide tuning range of three standard Lectrosonics blocks, or 67.5 to 76.8 MHz, depending on the specific frequency band, and employ Lectrosonics patented Digital Hybrid Wireless technology for compandor-free audio along with compatibility modes for interoperability with older analog systems. Like all our other products, the L Series units are made in the USA and feature machined aluminum housings, user-friendly setup and reliable operation.

LR receiver - Digital Hybrid Wireless Compact Receiver
Excellent performance in a small package for ENG and DSLR video production is the purpose and intent of the LR receiver design. Tracking front-end filters block interference from high powered RF signals on nearby channels to preserve the extended operating range. RF spectrum scanning displays accurate results on the LCD to make finding clear spectrum quick and easy.

The receiver is powered by internal AA batteries or with an optional battery eliminator. The top panel includes an IR port for transmitter setup. Firmware updates are enabled via a USB port on the side panel. The housing is made from a solid machined aluminum billet.

• Tracking front-end filters
• Digital Hybrid Wireless with compatibility modes for use with earlier transmitters
• Compact size powered by two AA batteries or an optional battery eliminator
• LCD with RF spectrum scanning
• SmartSquelch noiseless muting adapts automatically for near/far operation
• DSP-based pilot tone for squelch control
• USB port for firmware updates
• IR sync port for transmitter setup

LT transmitter - Digital Hybrid Wireless Belt-Pack Transmitter
The LT transmitter offers a full set of professional features in a compact, rugged package. The unit is compatible with all Digital Hybrid Wireless receivers and even some from other manufacturers, making it comfortable in a wide variety of applications from video production to theater, stage and house of worship.

The LT can be configured to operate as a "one touch" device with a single power on/off switch on the top panel, or with full access to all operational parameters using the side panel membrane switches and LCD interface. The top panel switch can also be configured to provide a mute or talkback function.

• Covers two frequency blocks in the US; three in Europe
• Digital Hybrid Wireless for compandor-free audio
• Selectable 50 or 100mW output power
• Compatibility modes for use with analog receivers
• 25 or 100 kHz tuning steps for up to 3072 selectable frequencies
• Integrated multi-function switch for mute or talkback modes
• Wide range input gain control in 1 dB steps
• IR port for setup with IR enabled receivers
• USB port for firmware updates
• Menu selectable mic or instrument input
• Optional battery eliminator
• Detachable antenna

M152/5P lavaliere Microphone
The M152 is a high performance microphone with heavily suppressed mechanical noise for critical applications. Awide, flat frequency response is augmented by a 2 or 3 dB bump in the upper octaves to add a crisper sound. Themic capsule should be positioned in the center of the talker’s chest, not to either side, as high up as is practical. Inwindy conditions, it can be placed underneath a collar or thin clothing to reduce wind noise, although this will dullthe sound somewhat.

LRSHOE camera shoe mount for LR Receiver
LRSHOE is an accessory shoe for LR or M2R receiver to allowing mounting on DSLR type cameras.

MCSRXLR cable, TA3F to XLRM
15″ audio cable for SR receiver, TA3F plug to 3 pin male XLR.

MCLRTRS cable, TA3F to 1/8" TRS
Audio cable; TA3F to right angle 3.5 mm mini plug; pin 2 of the TA3F is connected to both tip and ring of mini plug; 20 inch length.

CCMINI zippered pouch
A soft sided, padded and zippered carrying case for compact wireless systems such as the UCR400, UCR401, and other UCR units.
