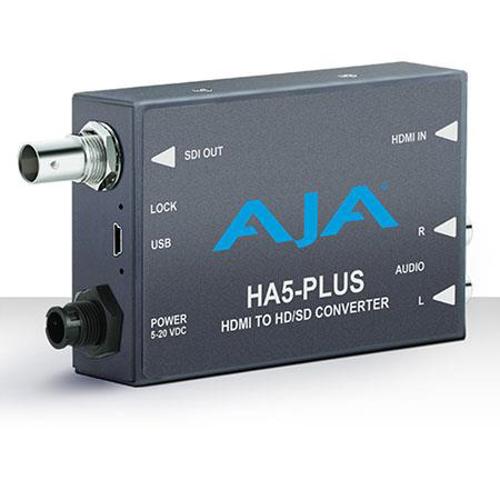

RENT AJA HA5 PLUS HDMI TO 3G-SDI CONVERTER
SKU: R-~AJA5HA5PLUS
Questions?
For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.
Call 212.627.8487
Email rent@adorama.com
Submit a Request Form
RENT AJA HA5 PLUS HDMI TO 3G-SDI CONVERTER Features
The AJA HA5-Plus HDMI to 3G-SDI Mini-Converter is converted to 3G-SDI output fordriving SDI monitoring solutions. Up to eight channels of HDMI audio are passed through to the SDI output as well as the ability to embed two channels of analogaudio.
Full HDMI Support
The equalized input on HA5-Plus is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.
Pristine Image Quality
A 3G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green) or HD (red) for fast and easy signal identification.
Analog audio input
Using the two RCA analog audio inputs, embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.
DSLR support
HA5-Plus accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.
USB and MiniConfig Support
AJA's free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and outputformats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Universal Power Supply
A universal power supply with international plug connections for use around the world is included.
