ARRI ARRI T1.9 Master Anamorphic S35 8-Lens Kit with 28mm, 35mm, 40mm, 50mm, 60mm, 75mm, 100mm and 135mm Lens, PL Mount
ARRI

RENT ARRI T1.9 Master Anamorphic S35 8-Lens Kit with 28mm, 35mm, 40mm, 50mm, 60mm, 75mm, 100mm and 135mm Lens, PL Mount

SKU: ~ARMSANAALL1

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

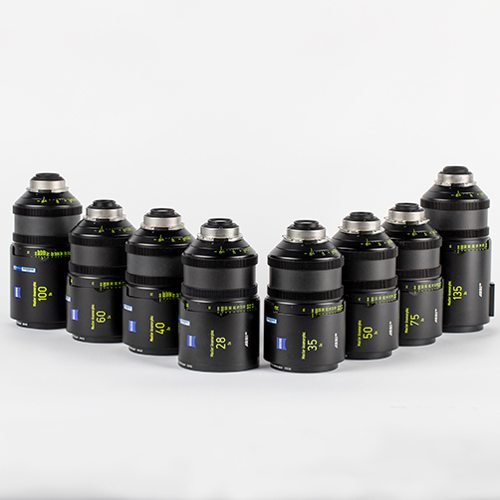

This Kit Includes

  • ARRI 28mm T1.9 Master Anamorphic Lens for PL Mount
  • ARRI 35mm T1.9 Master Anamorphic Lens for PL Mount
  • ARRI 40mm T1.9 Master Anamorphic Lens for PL Mount
  • ARRI 50mm T1.9 Master Anamorphic Lens for PL Mount
  • ARRI 60mm T1.9 Master Anamorphic Lens for PL Mount
  • ARRI 75mm T1.9 Master Anamorphic Lens for PL Mount
  • ARRI 100mm T1.9 Master Anamorphic Lens for PL Mount
  • ARRI 135mm T1.9 Master Anamorphic Lens for PL Mount
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

Details

RENT ARRI T1.9 Master Anamorphic S35 8-Lens Kit with 28mm, 35mm, 40mm, 50mm, 60mm, 75mm, 100mm and 135mm Lens, PL Mount Features

Master Anamorphic lenses represent a significant step forward in the technology and practicality of anamorphic cinematography for 35 format digital and film cameras.

The Master Anamorphic series comprises nine high-performance prime lenses ranging from 28 mm to 180 mm, accompanied by 1.4x and 2.0x ARRI ALURA LDS Extenders that lengthen the telephoto reach to 360 mm. Complementing the primes at the other end of the focal length scale is ARRI's unique Anamorphic Ultra-Wide Zoom AUWZ 19-36/T4.2, which allows extraordinary wide-angle shots with minimal distortion and uniform field illumination.

Perfectly combining compact size, minimal weight, very highspeed, and exceptional optical design, the Master Anamorphics deliver beautiful out-of-focus backgrounds and a smooth, cinematic look, while being as fast and easy to use on set as other modern cine lenses.

ARRI T1.9 Master Anamorphic 8-Lens Kit w/28,35,40,50,60,75,100,135mm, PL Mount Specifications

100mm T1.9 Master Anamorphic LensJump to...

Focal Length
100mm
Lens Mount
PL LDS
Aperture Range
T1.9-22
Number of Aperture Blades
15
Close Focus Distance
37.4" (0.95 m)
Magnification Ratio
H: 1:14.7, V: 1: 7.4
Front Diameter
3.7" (95 mm)
Maximum Diameter
4.5" (114 mm)
Entrance Pupil
-5.75" (-146 mm)
Angle of View (HxV)
Super 35 Cinemascope: 25-11 Degree
Maximum Image Circle
1.15" (29.26 mm)
Length
8.3" (210 mm)
Length Plus Flange Focal Distance
10.3" (262 mm)
Weight
6.8 lbs (3.1 kg)

135mm T1.9 Master Anamorphic LensJump to...

Focal Length
135mm
Lens Mount
PL LDS
Aperture Range
T1.9-22
Number of Aperture Blades
15
Close Focus Distance
47.2" (1.2 m)
Magnification Ratio
H: 1:15.6, V: 1: 7.8
Front Diameter
3.7" (95 mm)
Maximum Diameter
4.5" (114 mm)
Entrance Pupil
-5.08" (-129 mm)
Angle of View (HxV)
Super 35 Cinemascope: 19-8 Degree
Maximum Image Circle
1.15" (29.26 mm)
Length
8.9" (226 mm)
Length Plus Flange Focal Distance
10.9" (278 mm)
Weight
8.4 lbs (3.8 kg)

28mm T1.9 Master Anamorphic LensJump to...

Focal Length
28mm
Lens Mount
PL LDS
Aperture Range
T1.9-22
Number of Aperture Blades
15
Close Focus Distance
25.6" (0.65 m)
Magnification Ratio
H: 1:32.3 V: 1:16.4
Front Diameter
4.5" (114 mm)
Maximum Diameter
4.5" (114 mm)
Entrance Pupil
-7.40" (-188 mm)
Angle of View (HxV)
Super 35 Cinemascope: 78-36 Degree
Maximum Image Circle
1.15" (29.26 mm)
Length
7.2" (183 mm)
Length Plus Flange Focal Distance
9.3" (235 mm)
Weight
5.5 lbs (2.5 kg)

35mm T1.9 Master Anamorphic LensJump to...

Focal Length
35mm
Maximum Aperture
T1.9
Minimum Aperture
T22
Lens Mount
ARRI PL
Interchangeable Mount
No
Lens Format Coverage
Super35/APS-C
Image Circle
29.3mm
Angle of View
Super 35
Vertical: 30 Degree
Horizontal: 65 Degree
Focus Scales
Imperial
Filter Thread
No
Minimum Focus Distance
29.5" / 75cm
Maximum Magnification Ratio
1:32.3 (Horizontal)
Aperture/Iris Blades
15
Image Stabilization
No
Lens Mounting
No
Gear Standard
0.8 MOD
Electronic Communication
Yes
Diameter
Maximum: 4.5" / 114mm
Front: 3.7" / 95mm
Length
7.2" / 183mm
9.3" / 235mm From Flange
Weight
5.7lbs (2.6kg)

40mm T1.9 Master Anamorphic LensJump to...

Focal Length
40mm
Lens Mount
PL LDS
Aperture Range
T1.9-22
Number of Aperture Blades
15
Close Focus Distance
27.6" (0.7 m)
Magnification Ratio
H: 1:25.6, V: 1: 12.8
Front Diameter
3.7" (95 mm)
Maximum Diameter
4.5" (114 mm)
Entrance Pupil
-6.97" (-177 mm)
Angle of View (HxV)
Super 35 Cinemascope: 59-26 Degree
Maximum Image Circle
1.15" (29.26 mm)
Length
7.2" (183 mm)
Length Plus Flange Focal Distance
9.3" (235 mm)
Weight
6 lbs (2.7 kg)

50mm T1.9 Master Anamorphic LensJump to...

Focal Length
50mm
Maximum Aperture
T1.9
Minimum Aperture
T22
Lens Mount
ARRI PL
Interchangeable Mount
No
Lens Format Coverage
Super35/APS-C
Image Circle
29.3mm
Angle of View
Super 35
Vertical: 21 Degree
Horizontal: 48 Degree
Focus Scales
Imperial
Filter Thread
No
Minimum Focus Distance
29.5" / 75cm
Maximum Magnification Ratio
1:22.2 (Horizontal)
Aperture/Iris Blades
15
Image Stabilization
No
Lens Mounting
No
Gear Standard
0.8 MOD
Electronic Communication
Yes
Diameter
Maximum: 4.5" (114mm)
Front: 3.7" (95mm)
Length
7.2" (183mm)
9.3" (235mm) From Flange
Weight
5.7lbs (2.6kg)

60mm T1.9 Master Anamorphic LensJump to...

Focal Length
60mm
Lens Mount
PL LDS
Aperture Range
T1.9-22
Number of Aperture Blades
15
Close Focus Distance
35.4" (0.9 m)
Magnification Ratio
H: 1:24.3, V: 1: 12.2
Front Diameter
3.7" (95 mm)
Maximum Diameter
4.5" (114 mm)
Entrance Pupil
-5.98" (-152 mm)
Angle of View (HxV)
Super 35 Cinemascope: 41-18 Degree
Maximum Image Circle
1.15" (29.26 mm)
Length
7.2" (183 mm)
Length Plus Flange Focal Distance
9.3" (235 mm)
Weight
6 lbs (2.7 kg)

75mm T1.9 Master Anamorphic LensJump to...

Focal Length
75mm
Lens Mount
PL LDS
Aperture
T1.9 - T22
Close Focus
0.90 m / 3'
Magnification Ratio
H: 1:19.6,V: 1: 9.8
Length
183 mm / 7.2"
Entrance Pupil
-5.38" (-137mm)
Angle of view H -V
33 Degree - 14 Degree
Maximum Housing Diameter
4.5" (114 mm)
Front Diameter
3.7" (95 mm)
Weight
5.7 lbs (2.6kg)
