SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit

SmallHD allHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit

RENT SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit

SKU: ~SMHDCNE7ARR

First Day ?

Daily Price	3-Day Wknd Price	Weekly Price
$125	$125	$375

$125.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $2,225.21 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Call to rent

Questions?

If you need assistance or have any questions at all, we’re ready to help.

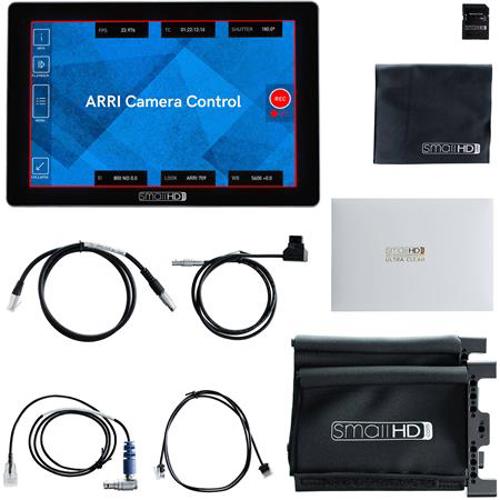

This Kit Includes

SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control
SmallHD Acrylic Screen Protector for 700 Series Monitors
SmallHD Sun Hood for 702 OLED Monitor
SmallHD 2-Pin LEMO to D-Tap Power Cable 36"
SmallHD ARRI Alexa Camera Cable Right Angle
SmallHD ARRI Alexa Camera Cable Straight
(2) x SmallHD Cine 7 Sunshade Clamps
(2) x Sony NP-F970 L-Series 6300mAh Info-Lithium Battery Pack
SWIT Electronics 2-Channel Charger/Adapter for Sony L Series Batteries
AC Cord for Most Chargers (2-Pin)
(2) x 3' HDMI Cable A to A
Noga 1/4"-20 Hold-It Articulating Cine Arm
Belden 3' 3G-SDI BNC Cable
Belden 10' 3G SDI BNC Cable
Core SWX 18" Coiled Powertap Cable for Sony NPF L-Series Battery Block

Questions?

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

Details Specifications

Details

RENT SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit Features

- Cine 7 Touchscreen On-Camera Monitor -

Full HD 7-inch Touchscreen Monitor with DCI-P3 Color and 1800 nits brightness

The New Industry Standard 7"

Cine 7 is the ultimate 7" on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and integrated Teradek RT and Bolt functionality.

- Sony L Series Battery Bracket -

Sony battery mounting solution for SmallHD 702 Touch and CINE 7 Monitors.

- LEMO to D-Tap, P-Tap Power Cable - 36" -

Pin 1 is GND Pin 2 is +DC (Pin 1 is closest to the red dot on the LEMO connector).

- 702 Touch/Cine 7 UltraClear Screen Protector -

Flexible Clear Screen Protector

Add scratch resistance and polarization to your SmallHD 702 Touch or Cine 7 monitor.

Prevent screen scratches on your SmallHD 702 Touch or Cine 7 monitor with this clear stick-on screen protector.

- 702 Touch/Cine 7 Sun Hood -

4-Sided Sun Hood with Mounting Bracket

Sleek and functional sun hood with a solid connection.

- ARRI Alexa Camera Control Cable -

3-foot Ethernet to 10-pin LEMO Cable for ARRI Alexa Cinema Cameras.

- ARRI Alexa Camera Control Cable (Right Angle) -

3-foot Ethernet to 10-pin LEMO (Right Angle) Cable for ARRI Alexa Cinema Cameras.

- Camera Control Software for ARRI (Software only) -

Camera Control for ARRI on your Cine 7 monitors

Interface with the ALEXA Mini and AMIRA cameras using the Cine 7 touchscreen display.

- 8GB SD Card -

• Store Your 3D LUTs

• Captured Images

• Flash your Firmware

Specifications

RENT SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit Specifications

Panel Type: IPS LCD
Diagonal Size: 7"
Resolution: 1920x1200
Pixel Density: Sat Nov 17 00:00:00 GMT-08:00 1900
Aspect Ratio: 16:10
Active Area: 5.95 x 3.72
Brightness: 1800 NITs
Contrast: 1000:1
Gamut: 100% DCI-P3 Coverage
Color Depth: 10-bit Processing (8-bit panel)
Viewing Angle: 160
Backlight Type: LED
Adjustable Backlight: Yes
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Power In: 2-pin Locking
USB: 1x USB 2.0 Micro-B receptacle
Primary: Touch Screen
Record Capture: Image Capture Tool
Connector: LEMO
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply: Recommend DC 12-15V at -2.5 amp or greater
Battery Types: L-Series (included), V Mount, Gold Mount
Overload Protection: DC input: Reverse polarity
Battery Chemistry: Li-ion
Battery Charging Time: Monitor does not support the charging of batteries
Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI > SDI & SDI > HDMI
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import: via SD Card or USB Storage Device
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
Compliance: FCC, IC, CE, RoHS
Operating Temperature: 30 to 100 Degree F (-1 to 37 Degree C)
Storage Temperature: 0 to 120 Degree F (-17 to 48 Degree C)
Mount Points: Four 1/4-20 Mount Points (Left, Right, Bottom, and Back)
Construction: Anodized aluminum chassis
Dimensions (W x H x D): 7.1 x 4.7 x 1.3" (18.03 x 11.94 x 3.3cm)
Weight: 20 oz (567g)
