Teradek radek Bolt Pro 3000 HDMI/SDI 2RX with Array Kit
Teradek : Picture 1 thumbnail Teradek : Picture 2 thumbnail Teradek : Picture 3 thumbnail Teradek : Picture 4 thumbnail Teradek : Picture 5 thumbnail Teradek : Picture 6 thumbnail Teradek : Picture 7 thumbnail Teradek : Picture 8 thumbnail Teradek : Picture 9 thumbnail

RENT Teradek Bolt Pro 3000 HDMI/SDI 2RX with Array Kit

SKU: ~TDBOLT3000D

First Day ?
Daily
Price
3-Day Wknd
Price
Weekly
Price
$500 $500 $1,500
$500.00

Set your Rental Period to see your cost.

Your cost for

Replacement Value: $12,410.87 ?

We require insurance or a major credit card to hold the replacement value of the equipment you are renting

Not available for your selected rental period.

Call us at 212.627.8487 to discuss availability
Call to rent
customer service representative icon

Questions?

If you need assistance or have any questions at all, we’re ready to help.

This Kit Includes

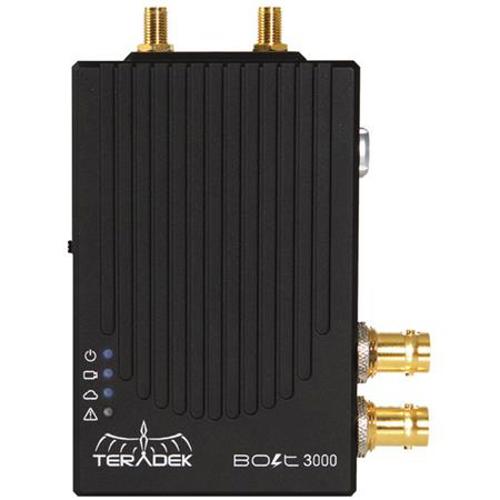

  • Teradek Bolt 3000 3G-SDI/HDMI Wireless Video Transmitter, Up to 3000' Range
  • (2) x Teradek Bolt 3000 3G-SDI/HDMI Wireless Video Receiver, Up to 3000' Range
  • Teradek Antenna Array for Bolt Receiver
  • Teradek Gold-Mount Battery Plate for Bolt Pro 300/600/2000 Receivers
  • (2) x Teradek 18 Watt AC Adapter 6' Cable to 2-pin Lemo
  • (3) x Teradek 18" 2-Pin Lemo to PowerTap Adapter Cable
  • (3) x Belden 3' 3G-SDI BNC Cable
  • (5) x Teradek 12" N-Male to RP-SMA Plug Cable for Antenna Array
  • (10) x Teradek Small Antenna
  • (2) x Teradek Large Antenna for Bolt
customer service representative

Questions?

customer service representative icon

For more information on this item, questions about rates, special requests, or if you need any assistance, we’re here for you.

Call 212.627.8487

Email rent@adorama.com

Submit a Request Form

RENT Teradek Bolt Pro 3000 HDMI/SDI 2RX with Array Kit Features

Teradek Bolt 3000 2RXHDMI/SDI w/Array
Teradek Bolt 3000 XT SDI/HDMI Wireless TX/RX | Adorama Rentals
Rent the Teradek Bolt 3000 XT SDI/HDMI Wireless TX/RX monitor with Array antenna. Compatible with the 3rd generation Bolt 3000, Sidekick II & 703 Bolt.

The Teradek Bolt 3000 XT SDI/HDMI Wireless TX/RX: Your Ultimate Wireless HDMI Transmitter
Increase productivity in a decluttered workspace when you go wireless with the Teradek Bolt 3000 XT. Unlike traditional production setups, complete assembly and configuration of the apparatus takes only a few minutes, freeing up more workable time to perfect your craft. The Teradek Wireless HDMI Transmitter may be directly attached to a camera or other video source through one built-in 1/4"-20 and two M3 threaded holes.
Equipped with a broad reach, the Teradek Bolt 3000 HDMI/SDI Wireless Video empowers dynamic users with the liberty to move around without losing hold of the feed. Coupled with the powerful Antenna Array, you get uninterrupted streaming even if you're positioned 3,000 feet away from the device. The Teradek Bolt completely overtakes its competitors by supplementing its impressive scope with an advanced rapid reconnect feature, guaranteeing instantaneous reestablishment of the streaming link the moment you're back within allowable range.
With less than 0.0001 seconds latency, you can boast lossless 3G video transmission throughout its entire signal margin. Because the Teradek Bolt 3000 XT is able to operate at low latency, you are also guaranteed negligible, if not a completely zero, delay broadcast.

Key features include:
•Lossless data transmission at up to 3,000 feet •< 0.001 seconds latency •Rapid reconnect and real-time frequency adjustment •Manual frequency adjustment •Interference-free operation with two new DFS channels •Visually lossless compression •10-bit color reproduction •State-of-the-art user interface •48 kHz, 24-bit PCM audio compression •Multiple video resolutions

Take Advantage of an Inclusive Format Compatibility Range
Apply the benefits of the industry-standard wireless HDMI trasmitter on a variety of video resolutions. The Teradek Bolt 3000 XT HDMI/SDI Wireless Video supports 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 Hz, as well as 1080PsF at 23.98, 24, 25, 29.97, and 30 Hz. 1080i and 720p are also streamable at 50, 59.94, and 60 Hz. Meanwhile, 480p at 59.94 Hz and 576p at 50 Hz resolutions are workable through the transmitter's HDMI ports, whereas 480i is available through NTSC and 576i via PAL.
Enjoy this versatile range together with a built-in HDMI to SDI converter. With the Teradek Bolt 3000 XT, you can connect both your on-camera monitor and video source using the same device without supplementary apparatus, making for a seamless cross-channel broadcast.

Get Superb Video Output with the Teradek Bolt 3000 XT Wireless HDMI Transmitter
Flaunt vivid color reproduction with the Teradek Bolt 3000 XT. Built with multiple color sampling tools, this efficient gear gives you the opportunity to set chroma levels to the best possible setting, resulting in the excellent digital translation of hues and shades. With the Teradek Wireless Transmitter and Receiver, outputs relayed through SDI get 10-bit color definition and may be subject to YCbCr 4:2:2 chroma subsampling. Use this tool to half the sampling rate horizontally while maintaining full sampling vertically.

On the other hand, videos streamed via the transmitter's HDMI port are afforded an 8-bit color depth at an RGB 4:4:4 signal. This allows you to broadcast your recordings without compressing data, giving full luminance and chroma payoff. In terms of audio quality, the Teradek Bolt 3000 supports sounds at up to 48 kHz with a 24-bit PCM.
Capable of working hand-in-hand with Wi-Fi and 5 GHz cordless phones, this industry-standard transmitter grants you convenient noise rejection measures for a truly seamless operation. To top it off, the introduction of two new DFS channels improves overall signal connection, making for an unparalleled interference-free experience.

Rugged & Intelligent Build
Despite giving users access to ground-breaking features, the Teradek Bolt 3000 remains manageable and robust. With the receiver measuring only 3.5 x 5.4 x 0.95 inches (8.89 x 13.72 x 2.41 cm), and the transmitter at 0.95 x 2.6 x 4.47 inches(2.41 x 6.6 x 11.35 cm), the entire kit can easily be carried and transported in case of set relocations. Both apparatus are very light in weight at only 13.3 oz (377 g) and 8 oz (226 g) respectively, allowing you to work for hours on end with minimal hand fatigue.
Consuming only about 7.3-9W of power, the Teradek Bolt 3000 XT HDMI/SDI Wireless Video Transmitter and Receiver are sure to keep up with the needs of even the most meticulous users. The Teradek Bolt 3000 XT is even functional under harsh working conditions, allowing you to work at temperatures ranging from 32° to 104°F (0 to 40°C) worry-free.
With the Teradek Bolt 3000 XT, you get not only intelligent user-interfaces applicable to Mac OS X and Windows, but timecode and metadata support as well. To top it off, a USB 3.0 grab engine is enabled, as well as an AES-128 encryption algorithm to protect your data.

Teradek Bolt 3000 XT SDI/HDMI Wireless TX/RX Rentals in NYC
Get high-quality wireless video transmission with the Teradek Bolt 3000 XT. With its 3,000-foot signal range, zero delay streaming, and visually lossless compression, you step up to the professional plate and take your production to the next level. Without blowing your budget, experience less than 0.001 latency and rich color renditions across numerous video resolutions when you rent the Teradek Bolt 3000 XT SDI/HDMI Wireless TX/RX Wireless Video Transmitter and Receiver from AdoramaRentals.com.
Located in Manhattan and Brooklyn, Adorama Rental Co. (ARC) supplies a variety of professional gear designed to aid you in your creative productions. Browse through our expansive rental inventory and choose from a wide selection of cameras, lenses, audio recorders, headphones, and more. Once you've decided which items you want to rent, set up your personal account and choose your preferred payment method. Finally, indicate your preferred pick-up and drop-off dates. You may pick up your order from our stores or use our curbside delivery service.
ARC is committed to providing the best products in excellent working condition to meet the needs of our customers. As such, every item is subject to meticulous quality checks and maintenance before and after every rental. Go to our How It Works page to learn more about the rental process, return policies, pick-up methods, and other important details.

RENT Teradek Bolt Pro 3000 HDMI/SDI 2RX with Array Kit Specifications

Video Inputs
1x 75 Ohms BNC
1x Type A receptacle HDMI
Video Outputs
1x 75 Ohms BNC(Loop-out)
SDI Ancillary Data Support
Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers
Color Sampling
SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx
<0.001sec (when no video format conversion is enabled)
Supported Resolutions
1080p 23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94/576p50 (via HDMI ports only)
480i(NTSC)/576i(PAL)
Video Compression
Visually lossless
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)
Audio Compression
48kHz 24-bit PCM
Construction
Milled Aluminum(Chassis) and regulation-compliant PCB
Plastic Cap
HTTP
No
Configuration Interfaces
No
Desktop App
Feature-rich Bolt Manager Application for OSX & Windows
USB Interface Functionality
Upgrade via Mini-USB
Wireless
Non-DFS Frequencies:
5.19 - 5.23Ghz and 5.755 - 5.795Ghz
DFS Frequencies:
5.27 - 5.55Ghz and 5.67Ghz
RF Channel Selection
Auto and Configurable Channel selection
Encryption
AES-128
RF Power
22dbm EIRP(with two 5dbi TX antennas)
Range
Up to 3000' (914.41m) line of sight
Unicast Multicast
Unicast / Multicast
Noise Rejection
Can coexist with Wi-Fi and 5GHz cordless phones
Power Input
2-Pin Connector 7-28 VDC
Battery
No
Nominal Power Consumption
7.5W (Measured at 1080p60)
Operating Temperature
0 to 50 deg. C (32 to 122 deg. F)
Mountability
Multiple mounting options with 4-40 holes
Multiple mounting options with 1/4" holes
Dimensions
Transmitter: 0.95 x 2.6 x 4.47" (24.13 x 66.04 x 113.54mm)
Case: 13.5 x 9.5 x 6.5" (342.90 x 241.30 x 165.10mm)
Weight
8oz (226.80g)
